Moxa PTC-101-M-ST-HV | PTC-101 Media Converter, 100BaseFX, ST, Multi-mode, HV

Authorised Moxa Partner

SKU:PTC-101-M-ST-HV

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

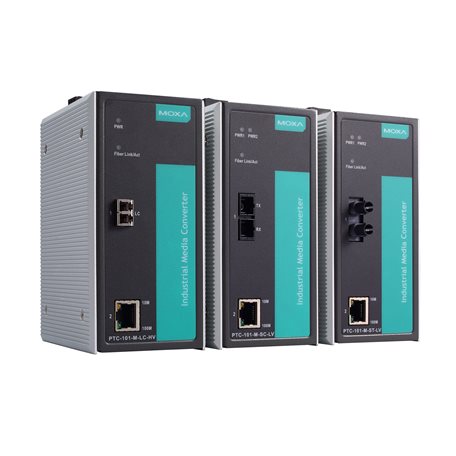

The PTC-101-M-ST-HV is an industrial 10/100BaseT(X) to 100BaseFX media converter with a multi-mode ST fibre port and a wide-range HV power input of 100 to 240 VAC/VDC. It extends Ethernet over multi-mode fibre up to 5 km on 50/125 µm or 4 km on 62.5/125 µm cable, and operates across a -40 to 85°C temperature range.

Built in a metal housing for DIN-rail mounting, this converter complies with the mandatory sections of IEC 61850-3, making it well suited to power substation and harsh industrial deployments. An integrated power supply removes the need for an external transformer, and Link Fault Pass-Through helps surface fibre or copper link faults across the connection.

Features

- 10/100BaseT(X) auto-negotiation and auto-MDI/MDI-X
- Link Fault Pass-Through (LFPT)
- Wide -40 to 85°C operating temperature range
- Integrated high-reliability power supply, no external power transformer needed
- Complies with mandatory sections of IEC 61850-3 (temperature, power input voltage, surge, ESD, vibration, conformal coating, power insulation)
- Supports IEEE 802.3 and IEEE 802.3u/x with 10/100M full/half-duplex operation

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 1 x 10/100BaseT(X) port (RJ45)
- 1 x 100BaseFX multi-mode port (ST connector)
- Fibre wavelength: 1300 nm multi-mode
- Typical distance: 5 km (50/125 µm) or 4 km (62.5/125 µm)
- TX power: -20 to -10 dBm, RX sensitivity: -32 dBm, link budget: 12 dB
- Magnetic isolation protection: 1.5 kV
- Power input: 100 to 240 VAC/VDC (85 to 264 VAC, 88 to 300 VDC)
- Input current: 350 to 200 mA at 100 to 240 V
- Overload current protection supported
- Metal housing, DIN-rail mounting
- Dimensions: 152.15 x 126.46 x 66.65 mm
- Weight: 785 g (product only)
- Operating temperature: -40 to 85°C
- Ambient relative humidity: 5 to 95% (non-condensing)
- Standards: IEC 61850-3, EN 55032/35, EN 62368-1, UL 62368-1, UL 60950-1
- MTBF: 4,660,534 hours (Telcordia SR332)

FAQs

Q: What fibre type and connector does the PTC-101-M-ST-HV use?
A: It has one 100BaseFX multi-mode port with an ST connector, operating at 1300 nm. Typical reach is 5 km on 50/125 µm fibre and 4 km on 62.5/125 µm fibre.

Q: What does the HV suffix mean for power input?
A: HV indicates the wide-range power input of 100 to 240 VAC/VDC (85 to 264 VAC, 88 to 300 VDC), so it can be powered from AC mains or high-voltage DC supplies without an external adapter.

Q: Is this converter suitable for power substations?
A: Yes. It complies with the mandatory sections of IEC 61850-3, covering temperature, power input voltage, surge, ESD, vibration, conformal coating and power insulation.

Q: What temperature range can it operate in?
A: The operating temperature range is -40 to 85°C, with non-condensing humidity of 5 to 95%.

Q: How is the unit mounted?
A: It is installed by DIN-rail mounting and has a metal housing for industrial environments.

Q: Does it support auto-negotiation on the copper port?
A: Yes. The 10/100BaseT(X) RJ45 port supports auto-negotiation and auto-MDI/MDI-X, so straight-through or crossover cabling both work.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
