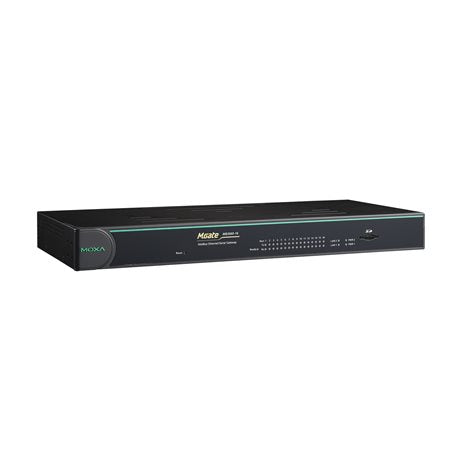

Moxa MGate MB3660-16-J-2AC | MGate MB3660 16-Port Modbus Gateway, RJ45, Dual LAN, Dual AC

Authorised Moxa Partner

SKU:MGate MB3660-16-J-2AC

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa MGate MB3660-16-J-2AC is a 16-port Modbus gateway that converts between Modbus TCP and Modbus RTU/ASCII, linking serial field devices to Ethernet-based SCADA and control systems. It provides 16 RS-232/422/485 serial ports on RJ45 connectors, dual Ethernet LAN ports and dual AC power inputs for redundant, always-on industrial connectivity. This variant has no serial isolation.

Designed for demanding automation environments, the gateway supports up to 256 TCP master/client connections or 128 TCP slave/server connections and up to 496 serial slave nodes. Auto Device Routing, Command Learning and agent mode with active and parallel polling simplify configuration and improve system performance, while the 0 to 60°C operating range suits control cabinets and plant floors.

Features

- Auto Device Routing for easy configuration
- Route by TCP port or IP address
- Command Learning to improve system performance
- Agent mode with active and parallel polling of serial devices
- Modbus serial master to Modbus serial slave communication
- Network redundancy with dual Ethernet ports
- Each serial port individually configurable for Modbus RTU or ASCII and baudrate

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 16 x RS-232/422/485 serial ports
- RJ45 serial connector (-J model)
- No serial isolation (non-I model)
- 2 x Ethernet LAN ports (same IP or dual IP)
- Dual AC power inputs, 100-240 VAC (47-63 Hz)
- Operating temperature 0 to 60°C
- Up to 256 TCP master/client connections, or 128 TCP slave/server connections
- Up to 496 serial slave nodes (16-port models)
- MTBF 437,337 hrs (Telcordia SR332)

FAQs

Q: What does the Moxa MGate MB3660-16-J-2AC do?
A: It is a Modbus gateway that converts between Modbus TCP and Modbus RTU/ASCII, connecting up to 16 serial devices to an Ethernet network.

Q: What serial interfaces does it support?
A: It has 16 serial ports that support RS-232, RS-422 and RS-485, each on an RJ45 connector. Each port can be set individually for Modbus RTU or ASCII and baudrate.

Q: Does this model provide serial isolation?
A: No. This is the non-isolated variant. The -J suffix indicates RJ45 serial connectors.

Q: Does it offer power and network redundancy?
A: Yes. It has dual AC power inputs (100-240 VAC) and two Ethernet LAN ports that can operate on the same IP address or on dual IPs.

Q: How many Modbus connections can it handle?
A: It supports up to 256 TCP master/client connections or 128 TCP slave/server connections, and up to 496 serial slave nodes on 16-port models.

Q: What is the operating temperature range?
A: The MGate MB3660-16-J-2AC operates from 0 to 60°C.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
