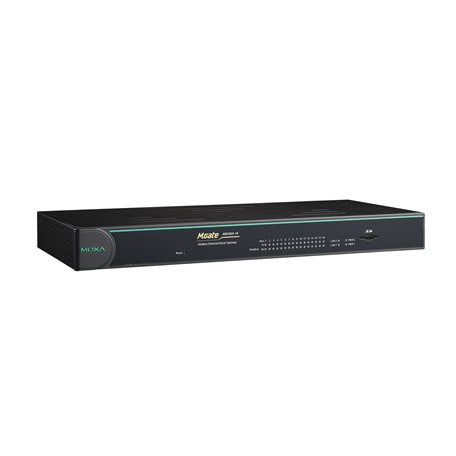

Moxa MGate MB3660-16-2AC | MGate MB3660 16-Port Modbus Gateway, DB9, Dual AC

Authorised Moxa Partner

SKU:MGate MB3660-16-2AC

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The MGate MB3660-16-2AC is a 16-port Modbus gateway that converts between Modbus TCP and Modbus RTU/ASCII, connecting up to 16 serial buses to an Ethernet network. Each of the 16 DB9 male serial ports is software selectable for RS-232, RS-422 or RS-485, without serial isolation, and the unit is powered from redundant dual 100 to 240 VAC inputs.

Two 10/100BaseT(X) Ethernet ports support the same IP or dual IPs for network redundancy, and the gateway handles up to 256 Modbus TCP client connections and 128 server connections. The metal IP30 housing is 19-inch rack width, operates from 0 to 60°C, and includes a microSD slot for configuration backup and event logs.

Features

- Auto Device Routing (patented) for easy configuration
- Route by TCP port or IP address
- Command Learning to improve performance
- Agent mode with active, parallel polling of serial devices
- Modbus serial master to Modbus serial slave communication
- Dual Ethernet ports with the same IP or dual IPs for network redundancy
- Dual AC power inputs for power redundancy
- microSD card for configuration backup/duplication and event logs
- Embedded traffic monitoring and diagnostic information
- Status monitoring and fault protection for easy maintenance
- Manages up to 496 serial slave nodes

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 16 x RS-232/422/485 serial ports (software selectable), DB9 male
- No serial isolation
- 2 x 10/100BaseT(X) Ethernet ports (RJ45), 2 IP addresses, Auto MDI/MDI-X
- Modbus TCP Client (Master) and Server (Slave)
- Modbus RTU/ASCII Master and Slave
- Up to 256 Modbus TCP client connections and 128 server connections
- Serial baud rate: 50 bps to 921.6 kbps
- Redundant dual AC power inputs, 100 to 240 VAC (50/60 Hz)
- Power consumption: 141 mA @ 110 VAC
- Operating temperature: 0 to 60°C (32 to 140°F)
- Metal housing, IP30
- Dimensions: 440 x 45 x 198 mm without ears, 480 x 45 x 198 mm with ears
- Weight: 2830 g
- Management: Web Console (HTTP/HTTPS), Telnet, SNMPv1/v2c/v3, DHCP, NTP Client, RADIUS
- 5-year warranty

FAQs

Q: What does the MGate MB3660-16-2AC do?
A: It is a 16-port Modbus gateway that converts between Modbus TCP and Modbus RTU/ASCII, letting Modbus TCP clients communicate with serial slave devices and serial masters communicate with Modbus TCP servers.

Q: Which serial interfaces does it support?
A: Each of the 16 DB9 male serial ports is software selectable for RS-232, RS-422 or RS-485. This model does not include serial isolation.

Q: Does it support power redundancy?
A: Yes. It has two AC power inputs accepting 100 to 240 VAC (50/60 Hz) for redundant power.

Q: Can it provide network redundancy?
A: Yes. The two Ethernet ports can operate with the same IP address or with dual IP addresses for network redundancy.

Q: How many Modbus connections does it handle?
A: It supports up to 256 Modbus TCP client connections and 128 server connections, and manages up to 496 serial slave nodes.

Q: What is the operating temperature range?
A: This model operates from 0 to 60°C, so it is intended for standard temperature environments such as control rooms and cabinets.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
