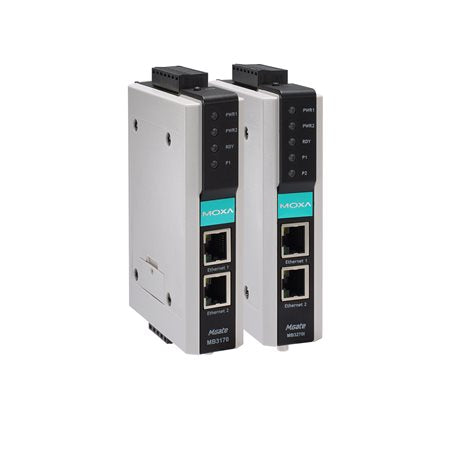

Moxa MGate-MB3270I | MGate MB3270I 2-Port Modbus Gateway, 2kV Isolation, 0-60C

Authorised Moxa Partner

SKU:MGate MB3270I

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa MGate MB3270I is a 2-port Modbus gateway that converts between Modbus TCP, Modbus RTU and Modbus ASCII, linking serial devices to Ethernet networks. Its two software-selectable RS-232/422/485 serial ports include 2 kV isolation, and the unit is rated for operation from 0 to 60°C, making it well suited to protecting serial equipment on industrial sites.

The gateway connects up to 32 Modbus TCP servers and up to 62 Modbus RTU/ASCII slaves, and can be accessed by up to 32 Modbus TCP clients. A serial redirector mode supports direct Modbus serial master to serial slave communication, while built-in Ethernet cascading with two RJ45 ports simplifies wiring. It mounts on a DIN rail and runs from 12 to 48 VDC.

Features

- Converts between Modbus TCP, RTU and ASCII
- Auto Device Routing for easy configuration
- Route by TCP port or IP address
- Connects up to 32 Modbus TCP servers and up to 62 Modbus RTU/ASCII slaves
- Accessed by up to 32 Modbus TCP clients, retaining 32 Modbus requests per master
- Serial redirector for Modbus serial master to serial slave communication
- Built-in Ethernet cascading for simpler wiring
- Emergency request tunnels for QoS control
- Embedded Modbus traffic monitoring for troubleshooting
- 2 kV isolation protection on the serial ports
- Redundant dual DC power inputs and 1 relay output

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 2 x 10/100BaseT(X) RJ45 Ethernet ports (1 IP, Ethernet cascade)
- 1.5 kV built-in Ethernet magnetic isolation
- 2 x RS-232/422/485 serial ports, DB9 male, software selectable
- 2 kV serial isolation
- Baudrate 50 bps to 921.6 kbps
- Up to 32 Modbus TCP client and 32 server connections
- Modbus TCP client/server, Modbus RTU/ASCII master/slave
- 12 to 48 VDC input, 7-pin terminal block
- 1 relay output, 1 A @ 30 VDC resistive load
- IP30 plastic housing, DIN-rail mountable
- Dimensions (without ears): 29 x 89.2 x 118.5 mm
- Weight: 380 g
- Operating temperature: 0 to 60°C
- Storage temperature: -40 to 85°C
- Humidity: 5 to 95% non-condensing
- Approvals: ATEX, Class I Division 2, IECEx, DNV-GL

FAQs

Q: Which Modbus protocols does the MGate MB3270I support?
A: It supports Modbus TCP client and server on the Ethernet side, and Modbus RTU/ASCII master and slave on the serial side, so it can convert between all three Modbus variants.

Q: Can it connect two serial Modbus devices directly to each other?
A: Yes. The serial redirector function supports Modbus serial master to serial slave communication through the gateway.

Q: What serial interfaces does it offer?
A: Two DB9 male serial ports, each software selectable between RS-232, RS-422 and RS-485, with 2 kV isolation protection.

Q: How many devices can it connect?
A: It can connect up to 32 Modbus TCP servers and up to 62 Modbus RTU/ASCII slaves, and can be accessed by up to 32 Modbus TCP clients.

Q: What power supply and mounting does it use?
A: It runs from 12 to 48 VDC via a 7-pin terminal block with redundant dual DC inputs, and mounts on a DIN rail in an IP30 housing.

Q: What is the operating temperature range?
A: This standard-temperature model operates from 0 to 60°C.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
