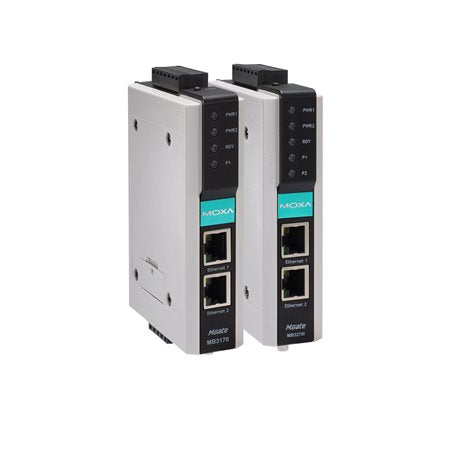

Moxa MGate MB3170I-S-SC-T | MGate MB3170I 1-Port Modbus Gateway, SC Single-Mode Fibre, 2kV, -40 to 75°C

Authorised Moxa Partner

SKU:MGate MB3170I-S-SC-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The MGate MB3170I-S-SC-T is a 1-port advanced Modbus gateway that converts between Modbus TCP and Modbus RTU/ASCII. This variant adds a 100BaseFX single-mode fibre Ethernet port with an SC connector, 2 kV serial magnetic isolation and a -40 to 75°C wide operating temperature range, making it suited to long-distance, electrically noisy industrial sites.

A single software-selectable RS-232/422/485 serial port lets serial Modbus devices be reached by up to 32 TCP masters, or lets the gateway poll up to 32 TCP slaves. Auto-Device Routing, Ethernet cascading and a built-in Modbus traffic monitor simplify configuration and troubleshooting, while the DIN-rail mountable IP30 housing runs from a 12 to 48 VDC supply.

Features

- Converts between Modbus TCP, ASCII and RTU, supporting serial-to-Ethernet and serial master to serial slave
- Serial and Ethernet masters can access serial Modbus devices simultaneously
- Auto-Device Routing for easy configuration
- Routing by TCP port or IP address
- Accessible by up to 32 TCP masters or connects to up to 32 TCP slaves
- Supports up to 31 or 62 serial slave devices
- Ethernet cascading for easy wiring
- Serial redirector function
- Embedded Modbus traffic monitor
- Priority control gives urgent commands an immediate response
- Built-in 2 kV serial isolation
- Single-mode fibre port for long-distance, noise-immune links
- Rugged, DIN-rail mountable design

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 1 x RS-232/422/485 serial port, software selectable
- Serial connectors: DB9 male for RS-232, terminal block for RS-422/485
- Ethernet: 100BaseFX single-mode fibre, SC connector
- Fibre typical distance: 40 km at 1310 nm (single-mode)
- Fibre link budget: 29 dB
- Second Ethernet port: 10/100 Mbps RJ45 with Auto MDI/MDIX for cascading
- Ethernet magnetic isolation: 1.5 kV built-in
- Serial magnetic isolation: 2 kV
- ESD protection: 15 kV on all serial signals
- Protocols: Modbus TCP, Modbus RTU, Modbus ASCII (master and slave)
- Serial baud rate: 50 bps to 921.6 kbps
- Up to 32 TCP masters or 32 TCP slaves
- Input voltage: 12 to 48 VDC via terminal block
- Input current: 555 mA at 12 VDC
- 1 digital relay output (normally closed), 1 A at 30 VDC
- Operating temperature: -40 to 75°C
- Storage temperature: -40 to 85°C
- Humidity: 5 to 95% non-condensing
- Housing: plastic, IP30, DIN-rail or wall mount
- Dimensions: 29 x 89.2 x 118.5 mm (without ears)
- Weight: 360 g
- Safety: UL 508, EN 60950-1
- Hazardous location: Class 1 Division 2, ATEX, IECEx
- Marine: DNV
- MTBF: 763,707 hours (Telcordia SR332)

FAQs

Q: What does the SC fibre port on the MGate MB3170I-S-SC-T support?
A: It provides a 100BaseFX single-mode (G.652) Ethernet connection with an SC connector at 1310 nm, with a typical distance of 40 km and a 29 dB link budget.

Q: Does this gateway still have a copper Ethernet port?
A: Yes. It has two Ethernet ports sharing one IP address, a fibre port and a 10/100 Mbps RJ45 port, which allows Ethernet cascading for simpler wiring.

Q: What serial interfaces are supported?
A: The single serial port is software selectable between RS-232, RS-422 and RS-485. RS-232 uses a DB9 male connector, while RS-422/485 uses a terminal block.

Q: How many Modbus devices can it connect?
A: As a slave gateway it can be accessed by up to 32 TCP masters. As a master it can connect to up to 32 TCP slaves, and it supports up to 31 or 62 serial slave devices.

Q: Is it suitable for harsh or outdoor-cabinet environments?
A: It operates from -40 to 75°C and has 2 kV serial isolation and 15 kV ESD protection. It carries Class 1 Division 2, ATEX, IECEx and DNV approvals. The housing is IP30, so it needs installation in a suitable enclosure.

Q: What power supply does it need?
A: It runs from 12 to 48 VDC via a terminal block and draws 555 mA at 12 VDC.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
