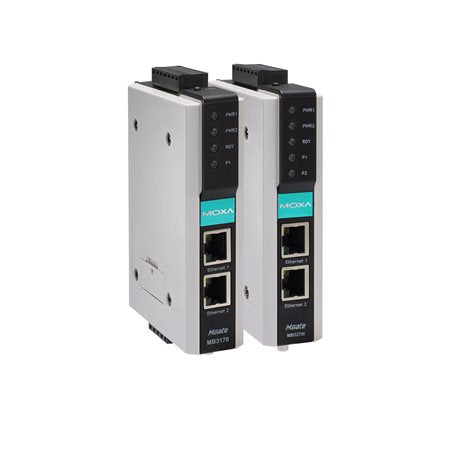

Moxa MGate MB3170I-S-SC | MGate MB3170 Modbus Gateway, Single-Mode SC Fibre, 2kV

Authorised Moxa Partner

SKU:MGate MB3170I-S-SC

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The MGate MB3170I-S-SC is a 1-port advanced Modbus gateway that bridges Modbus TCP networks and Modbus RTU/ASCII serial devices. This variant adds a single-mode 100BaseFX fibre port with SC connectors for long-distance Ethernet links of up to 40 km typical, along with 2 kV serial isolation and an operating range of 0 to 60°C.

The gateway supports up to 32 Modbus TCP client and 32 server connections, with two 10/100BaseT(X) RJ45 ports for Ethernet cascading and a software-selectable RS-232/422/485 serial port. Security functions include HTTPS (TLS 1.2), SNMPv3 and AES encryption, and the unit carries hazardous location (ATEX, Class I Division 2, IECEx) and DNV maritime approvals.

Features

- Converts between Modbus TCP and Modbus RTU/ASCII
- Single-mode fibre port with SC connectors for long-distance Ethernet links, up to 40 km typical
- 2 kV serial isolation plus 1.5 kV built-in magnetic isolation on the Ethernet ports
- Dual 10/100 Ethernet RJ45 ports for cascading
- Software-selectable RS-232/422/485 serial interface
- Security functions include HTTPS (TLS 1.2), SNMPv3 and AES encryption
- Hazardous location approvals (ATEX, Class I Div 2, IECEx) and DNV maritime approval
- Configurable via web console, MGate Manager, Device Search Utility and MCC Tool

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 1 x 100BaseFX single-mode fibre port, SC connector
- Single-mode typical distance: 40 km at 1310 nm, 29 dB link budget
- 2 x 10/100BaseT(X) RJ45 ports (1 IP, Ethernet cascade), auto MDI/MDI-X
- 1.5 kV built-in magnetic isolation on Ethernet ports
- 1 x RS-232/422/485 serial port, software selectable
- Serial connector: DB9 male for RS-232, terminal block for RS-422/485
- Serial baudrate: 50 bps to 921.6 kbps
- 2 kV serial isolation
- Ethernet protocols: Modbus TCP Client (Master), Modbus TCP Server (Slave)
- Serial protocols: Modbus RTU/ASCII Master and Slave
- 32 client connections and 32 server connections
- Input voltage: 12 to 48 VDC, 555 mA @ 12 VDC
- Power connector: 7-pin terminal block
- Relay contact rating: 1 A @ 30 VDC resistive load
- Plastic housing, IP30 rating
- Dimensions (with ears): 29 x 89.2 x 124.5 mm
- Weight: 360 g
- Operating temperature: 0 to 60°C
- Storage temperature: -40 to 85°C
- Ambient relative humidity: 5 to 95% (non-condensing)
- Approvals: ATEX, Class I Division 2, IECEx, DNV, UL 508
- MTBF: 1,385,414 hrs (Telcordia SR332)

FAQs

Q: What type of fibre does the MGate MB3170I-S-SC use?
A: It has one 100BaseFX single-mode fibre port with an SC connector, designed for G.652 cable. Typical reach is 40 km at 1310 nm with a 29 dB link budget.

Q: Which protocols does it convert between?
A: It bridges Modbus TCP (as client or server) and Modbus RTU/ASCII serial devices (as master or slave), supporting up to 32 client and 32 server connections.

Q: Which serial interfaces are supported?
A: The single serial port supports RS-232, RS-422 and RS-485, selected in software. RS-232 uses a DB9 male connector and RS-422/485 uses a terminal block, with 2 kV isolation.

Q: What power supply does it need?
A: It runs from 12 to 48 VDC via a 7-pin terminal block, drawing 555 mA at 12 VDC.

Q: What is the operating temperature range?
A: This standard-temperature model operates from 0 to 60°C. It is housed in a plastic IP30 enclosure suited to cabinet or DIN-style installation.

Q: How is the gateway configured and secured?
A: Configuration is via the web console (HTTP/HTTPS), MGate Manager, Device Search Utility, MCC Tool or Telnet. Security options include HTTPS (TLS 1.2), SNMPv3 and AES encryption.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
