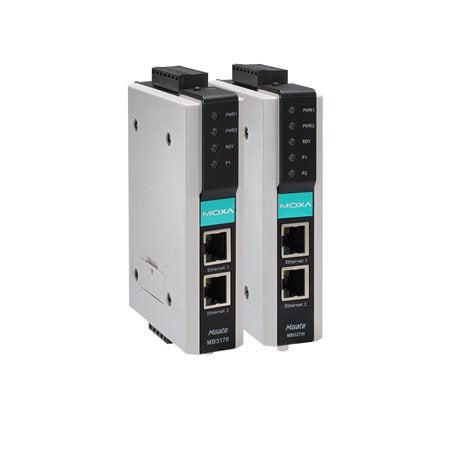

Moxa MGate MB3170I-M-SC-T | MGate MB3170 Modbus TCP Gateway, Multi-Mode SC Fibre, 2kV

Authorised Moxa Partner

SKU:MGate MB3170I-M-SC-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa MGate MB3170I-M-SC-T is a 1-port Modbus TCP gateway that converts between Modbus TCP and Modbus RTU/ASCII serial devices. It adds a 100BaseFX multi-mode fibre port with SC connector for EMI-immune links of up to 4 km, 2 kV serial isolation and a -40 to 75°C operating range, making it well suited to harsh industrial and substation environments.

The gateway supports both Modbus TCP client and server modes alongside RTU/ASCII master and slave, with 32 client and 32 server connections. A software-selectable RS-232/422/485 serial port, two 10/100BaseT(X) RJ45 ports with Ethernet cascade for daisy-chain wiring, and a 12 to 48 VDC input make integration straightforward. Management is available through web console, MGate Manager, DSU, MCC Tool or Telnet, with HTTPS (TLS 1.2) and SNMPv3 for secure configuration.

Features

- Converts between Modbus TCP and Modbus RTU/ASCII protocols
- Supports Modbus TCP client and server, plus RTU/ASCII master and slave
- Built-in multi-mode SC fibre port for EMI-immune long-distance links
- 2 kV serial isolation and 1.5 kV Ethernet magnetic isolation
- Ethernet cascade port for daisy-chain wiring
- Configurable via web console, MGate Manager, DSU, MCC Tool or Telnet
- Secure management with HTTPS (TLS 1.2) and SNMPv3
- Wide operating temperature of -40 to 75°C
- ATEX, Class I Division 2, IECEx and DNV certifications

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 1 x 100BaseFX multi-mode fibre port, SC connector, typical distance 4 km, 1300 nm
- 2 x 10/100BaseT(X) RJ45 ports (1 IP, Ethernet cascade), auto MDI/MDI-X
- 1.5 kV built-in Ethernet magnetic isolation
- 1 x RS-232/422/485 serial port, software selectable, DB9 male and terminal block
- 2 kV serial isolation
- Baudrate: 50 bps to 921.6 kbps
- Modbus TCP Client/Server and Modbus RTU/ASCII Master/Slave
- 32 client and 32 server connections
- Input voltage: 12 to 48 VDC, 7-pin terminal block
- Input current: 555 mA @ 12 VDC
- Operating temperature: -40 to 75°C
- Storage temperature: -40 to 85°C
- Housing: plastic, IP30
- Dimensions (without ears): 29 x 89.2 x 118.5 mm
- Weight: 360 g
- Hazardous locations: ATEX, Class I Division 2, IECEx
- Maritime: DNV
- MTBF: 1,385,414 hrs (Telcordia SR332)

FAQs

Q: What fibre type and connector does the MGate MB3170I-M-SC-T use?
A: It has a 100BaseFX multi-mode fibre port with an SC connector, with a typical distance of 4 km at 1300 nm.

Q: Which Modbus modes does this gateway support?
A: It supports Modbus TCP client (master) and server (slave) on the Ethernet side, and Modbus RTU/ASCII master and slave on the serial side.

Q: Which serial interfaces are available?
A: One software-selectable RS-232/422/485 port, using a DB9 male connector for RS-232 and a terminal block for RS-422/485, with 2 kV isolation.

Q: What is the operating temperature range?
A: The -T wide-temperature model operates from -40 to 75°C.

Q: How is the unit powered?
A: It runs from a 12 to 48 VDC input via a 7-pin terminal block, drawing 555 mA at 12 VDC.

Q: How many simultaneous connections are supported?
A: The gateway supports up to 32 Modbus TCP client connections and 32 server connections.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
