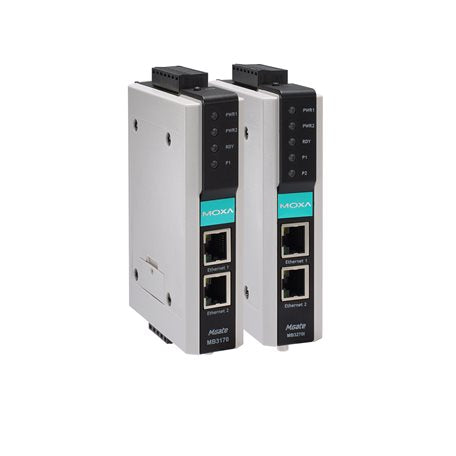

Moxa MGate MB3170-M-ST | MGate MB3170 Modbus Gateway, 1-Port, Multi-Mode ST Fiber, 0-60°C

Authorised Moxa Partner

SKU:MGate MB3170-M-ST

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa MGate MB3170-M-ST is a 1-port Modbus gateway that converts between Modbus TCP, ASCII and RTU. It pairs a single RS-232/422/485 serial port with a 100BaseF(X) multi-mode fibre Ethernet port using an ST connector, making it well suited to industrial sites where fibre is used to avoid electrical interference. This non-isolated model is rated for operation from 0 to 60°C.

The gateway connects serial and Ethernet masters at the same time to serial Modbus devices and supports up to 32 TCP master/clients or up to 32 TCP slave/servers. Routing by IP address, TCP port number or ID mapping, plus a priority control function for urgent commands, helps keep control networks responsive. A rugged DIN-rail or panel mount design suits cabinet installations.

Features

- Converts between Modbus TCP, ASCII and RTU protocols
- Supports serial-to-Ethernet and serial (master) to serial (slave) communication
- Connects serial and Ethernet masters simultaneously to serial Modbus devices
- Routing by IP address, TCP port number or ID mapping
- Priority control function gives urgent commands an immediate response
- Multi-mode ST fibre port for noise-immune Ethernet connectivity
- Rugged, DIN-rail mountable design

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 1 x 100BaseF(X) multi-mode fibre Ethernet port (ST connector)
- 1 serial port, RS-232/422/485
- No serial isolation on this model
- Supports up to 32 TCP master/clients or up to 32 TCP slave/servers
- Operating temperature 0 to 60°C
- Ambient relative humidity 5 to 95% (non-condensing)
- Mounting: DIN-rail or panel mount

FAQs

Q: What type of Ethernet connection does the MGate MB3170-M-ST use?
A: It has one 100BaseF(X) multi-mode fibre Ethernet port with an ST connector.

Q: Which serial interfaces does it support?
A: The single serial port supports RS-232, RS-422 and RS-485.

Q: Does this model provide serial isolation?
A: No. This model is non-isolated. Isolated variants are available in the MB3170I series.

Q: Which Modbus protocols can it convert between?
A: It converts between Modbus TCP, ASCII and RTU, and supports both serial-to-Ethernet and serial master to serial slave communication.

Q: How many TCP connections does it support?
A: It supports up to 32 TCP master/clients or up to 32 TCP slave/servers.

Q: What is the operating temperature range?
A: The MGate MB3170-M-ST is rated for operation from 0 to 60°C.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
