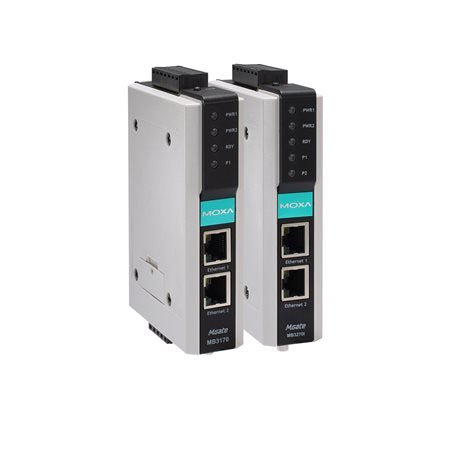

Moxa MGate MB3170-M-SC | MGate MB3170 1-Port Modbus Gateway, 100BaseFX SC, 0-60°C

Name: Moxa MGate MB3170-M-SC | MGate MB3170 1-Port Modbus Gateway, 100BaseFX SC, 0-60°C
Brand: Moxa
SKU: MGate MB3170-M-SC
Price: 849.2 AUD
Availability: InStock

Authorised Moxa Partner

SKU:MGate MB3170-M-SC

In stock:2

$849.20 inc. GST

$772.00 ex. GST

Sale Stock Status: Enquire

Shipping calculated at checkout.

Quantity

Description

The Moxa MGate MB3170-M-SC is a 1-port Modbus TCP gateway that converts between Modbus TCP and Modbus RTU/ASCII serial devices. This variant connects to the network over a 100BaseFX multi-mode fiber port with an SC connector, giving serial-to-Ethernet integration with the noise immunity and extended distance of fibre, and it operates across a standard 0 to 60°C temperature range.

A single software-selectable RS-232/422/485 serial port lets one gateway bridge a wide range of Modbus serial equipment into an Ethernet network. Two additional 10/100BaseT(X) RJ45 ports support Ethernet cascade for daisy-chain wiring, and built-in 1.5 kV magnetic isolation protects the Ethernet interface in industrial automation and monitoring deployments.

Features

- Advanced Modbus gateway for serial-to-Ethernet connectivity
- Multi-mode fibre (SC) Ethernet connection for noise immunity and longer distances
- Ethernet cascade port for daisy-chain wiring
- Software-selectable RS-232/422/485 serial interface
- Built-in 1.5 kV magnetic isolation protection

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 1 x 100BaseF(X) multi-mode fibre port (SC connector)
- 2 x 10/100BaseT(X) RJ45 Ethernet ports (1 IP, Ethernet cascade), Auto MDI/MDI-X
- 1.5 kV built-in magnetic isolation protection
- 1 x serial port: RS-232/422/485 (software selectable)
- DB9 male connector for RS-232 and terminal block for RS-422/485
- Operating temperature: 0 to 60°C
- Protocol conversion: Modbus TCP to Modbus RTU/ASCII

FAQs

Q: What does the MGate MB3170-M-SC convert between?
A: It converts between Modbus TCP on the Ethernet side and Modbus RTU/ASCII on the serial side, allowing serial Modbus devices to communicate over an Ethernet network.

Q: What type of fibre connection does this model use?
A: It has one 100BaseF(X) multi-mode fibre port with an SC connector.

Q: Which serial interfaces are supported?
A: The single serial port supports RS-232, RS-422 and RS-485, selectable in software. RS-232 uses a DB9 male connector and RS-422/485 uses a terminal block.

Q: Can I daisy-chain devices from this gateway?
A: Yes. The two 10/100BaseT(X) RJ45 ports provide Ethernet cascade capability for daisy-chain wiring.

Q: What operating temperature range does this variant support?
A: The MB3170-M-SC operates from 0 to 60°C, the standard temperature range.

Q: Is Ethernet isolation protection included?
A: Yes, the Ethernet ports include 1.5 kV built-in magnetic isolation protection.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
