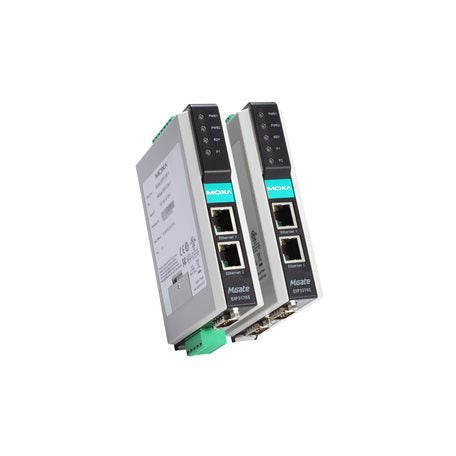

Moxa MGate EIP3270I | 2-Port EtherNet/IP to DF1 Gateway, 2 kV

Authorised Moxa Partner

SKU:MGate EIP3270I

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa MGate EIP3270I is a 2-port industrial protocol gateway that converts between EtherNet/IP (PCCC) and serial DF1, allowing Allen-Bradley and Rockwell serial devices to connect to an EtherNet/IP network. The 'I' model adds 2 kV serial isolation on both DB9 serial ports, protecting equipment in electrically noisy plant environments, and operates across 0 to 60°C.

Each of the two DB9 male serial ports supports RS-232 and RS-422 with baud rates from 1200 bps to 921.6 kbps, while two 10/100 Ethernet ports with built-in cascading simplify wiring. Configuration is handled through MGate Manager or Telnet console, and the gateway supports up to 8 simultaneous EtherNet/IP client/server pairs in an IP30 housing powered from 12 to 48 VDC.

Features

- Supports PCCC objects for Rockwell Automation networks
- ProCOM for control via COM port mapping
- 8 simultaneous EtherNet/IP client/server pairs with up to 16 queued requests
- Serial redirector keeps the original serial master/slave connection while connecting devices to Ethernet
- EtherNet/IP and DF1 traffic monitor for troubleshooting
- Redundant dual DC power inputs
- Built-in Ethernet cascading for easy wiring
- Built-in 2 kV serial isolation

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 2 x 10/100BaseT(X) Ethernet ports (RJ45), Auto MDI/MDI-X
- 2 x DB9 male serial ports, RS-232/RS-422
- 2 kV serial isolation
- Ethernet protocol: EtherNet/IP (PCCC)
- Serial protocol: DF1 (Transparent)
- Baud rate: 1200 bps to 921.6 kbps
- Max. client connections: 8
- Input voltage: 12 to 48 VDC, 510 mA @ 12 VDC
- IP30 housing, plastic top cover with metal bottom plate
- Dimensions (with ears): 29 x 89.2 x 124.5 mm
- Weight: 380 g
- Operating temperature: 0 to 60°C
- Storage temperature: -40 to 85°C
- Configuration: MGate Manager, Telnet console

FAQs

Q: What does the MGate EIP3270I do?
A: It converts between EtherNet/IP (PCCC) and serial DF1, so serial Allen-Bradley and Rockwell devices can communicate over an EtherNet/IP network.

Q: What serial interfaces does it support?
A: It has two DB9 male serial ports supporting RS-232 and RS-422, with baud rates from 1200 bps to 921.6 kbps.

Q: What is the difference between the EIP3270I and the standard EIP3270?
A: The 'I' model adds 2 kV isolation protection on the serial ports, which suits environments with electrical noise or ground potential differences.

Q: How is the gateway powered?
A: It accepts 12 to 48 VDC input and draws 510 mA at 12 VDC, with redundant dual DC power inputs.

Q: How is it configured?
A: Configuration is done with MGate Manager software or the Telnet console.

Q: What operating temperature range does this model support?
A: The EIP3270I operates from 0 to 60°C.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
