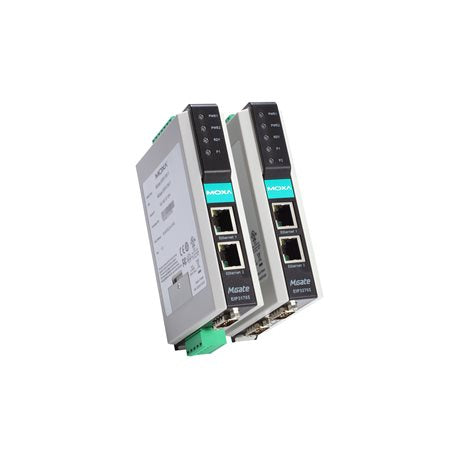

Moxa MGate EIP3270-T | EtherNet/IP to DF1 Gateway, 2-Port, -40 to 75°C

Authorised Moxa Partner

SKU:MGate EIP3270-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The MGate EIP3270-T is a 2-port EtherNet/IP to DF1 protocol gateway that connects serial DF1 devices to EtherNet/IP networks. It provides two non-isolated RS-232/RS-422 serial ports and two 10/100BaseT(X) Ethernet ports, and its wide temperature rating of -40 to 75°C suits cabinets and outdoor enclosures in harsh industrial environments.

The gateway supports transparent full-duplex DF1 operation with EtherNet/IP (PCCC) and up to 8 client connections. It runs from a 12 to 48 VDC supply in an IP30 housing, with ATEX and Class I Division 2 hazardous location approvals and configuration through MGate Manager or a Telnet console.

Features

- Converts between EtherNet/IP and DF1 serial protocols
- Two serial ports and two Ethernet ports
- Wide operating temperature range of -40 to 75°C for harsh environments
- Configurable with MGate Manager or Telnet console
- Management support for SNMPv1, DHCP client, ARP, TCP/IP, Telnet and UDP
- Hazardous location approvals (ATEX, Class I Div. 2)

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 2 x 10/100BaseT(X) Ethernet ports (RJ45, auto MDI/MDI-X)
- 2 x DB9 male serial ports, RS-232/RS-422, non-isolated
- EtherNet/IP (PCCC) to DF1 (transparent, full duplex)
- Up to 8 client connections
- Serial baudrate: 1200 bps to 921.6 kbps
- Input voltage: 12 to 48 VDC, 435 mA @ 12 VDC
- Operating temperature: -40 to 75°C (-40 to 167°F)
- IP30 housing, plastic top cover with metal bottom plate
- Dimensions (without ears): 29 x 89.2 x 118.5 mm
- Weight: 380 g
- MTBF: 1,204,573 hrs (Telcordia SR332)

FAQs

Q: What does the MGate EIP3270-T connect?
A: It connects DF1 serial devices to EtherNet/IP networks, translating between the two protocols in transparent full-duplex mode.

Q: What serial interfaces does it provide?
A: It has 2 DB9 male serial ports supporting RS-232 and RS-422. The serial ports are non-isolated.

Q: What temperature range does the EIP3270-T support?
A: It is a wide-temperature model rated for operation from -40 to 75°C.

Q: How many client connections are supported?
A: The gateway supports up to 8 client connections.

Q: How is the gateway powered?
A: It accepts a 12 to 48 VDC input, drawing 435 mA at 12 VDC.

Q: How is the MGate EIP3270-T configured?
A: Configuration is done with the MGate Manager utility or through a Telnet console.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
