Moxa MGate EIP3170I-T | EtherNet/IP to DF1 Gateway, 1-Port, 2 kV, -40 to 75°C

Authorised Moxa Partner

SKU:MGate EIP3170I-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

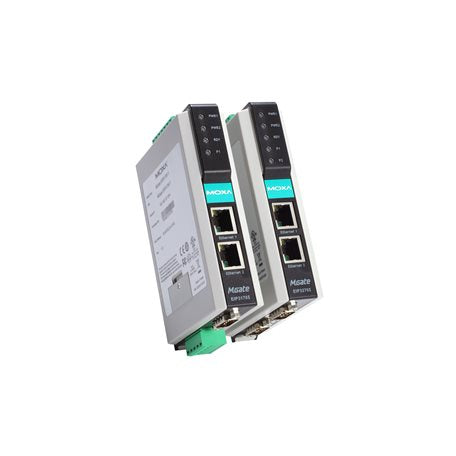

The Moxa MGate EIP3170I-T is a 1-port industrial EtherNet/IP to DF1 protocol gateway that lets Rockwell Automation networks communicate with serial DF1 devices. This model adds 2 kV serial isolation and an extended -40 to 75°C operating range, making it suited to harsh factory floors, outdoor cabinets and electrically noisy environments.

The gateway supports PCCC objects, up to 8 simultaneous EtherNet/IP client/server pairs with up to 16 queued requests, and provides a serial port with DB9 male (RS-232) and terminal block (RS-422/485) connectivity. Dual 10/100 Ethernet ports, configuration through MGate Manager or Telnet console, and a built-in traffic monitor simplify commissioning and troubleshooting. A compact IP30 housing and 12 to 48 VDC redundant power inputs suit DIN-rail style industrial installations.

Features

- PCCC objects supported for Rockwell Automation networks
- ProCOM for control via COM port mapping
- 8 simultaneous EtherNet/IP client/server pairs with up to 16 queued requests
- Serial redirector keeps the original serial master/slave connection while connecting devices to Ethernet
- EtherNet/IP and DF1 traffic monitor for troubleshooting
- Redundant dual DC power inputs
- Built-in 2 kV serial isolation
- Wide -40 to 75°C operating temperature for harsh environments

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 1 x serial port: DB9 male for RS-232, terminal block for RS-422/485
- 2 x 10/100BaseT(X) Ethernet ports (RJ45), auto MDI/MDI-X
- Ethernet magnetic isolation protection: 1.5 kV (built-in)
- Serial isolation: 2 kV
- Ethernet industrial protocol: EtherNet/IP (PCCC)
- Serial industrial protocol: DF1 (transparent), full duplex
- Serial baudrate: 1200 bps to 921.6 kbps
- Max. client connections: 8
- Input voltage: 12 to 48 VDC
- Input current: 555 mA @ 12 VDC
- Relay contact current rating: resistive load 1 A @ 30 VDC
- Housing: plastic top cover, metal bottom plate, IP30
- Dimensions (with ears): 29 x 89.2 x 124.5 mm
- Operating temperature: -40 to 75°C (-40 to 167°F)
- Storage temperature: -40 to 85°C (-40 to 185°F)
- Ambient relative humidity: 5 to 95% (non-condensing)
- Maritime approval: DNV
- MTBF: 1,344,456 hrs (Telcordia SR332)

FAQs

Q: What does the MGate EIP3170I-T connect?
A: It converts between EtherNet/IP (PCCC) and serial DF1, allowing Rockwell Automation EtherNet/IP networks to communicate with serial DF1 devices.

Q: What serial interfaces does it support?
A: It has one serial port with a DB9 male connector for RS-232 and a terminal block for RS-422/485, supporting baudrates from 1200 bps to 921.6 kbps.

Q: What is the difference between this model and a non-isolated MGate EIP3170?
A: The I in the model name indicates 2 kV serial isolation, and the -T suffix indicates an extended operating temperature range of -40 to 75°C.

Q: How is the gateway configured?
A: Configuration is done through the MGate Manager utility or the Telnet console.

Q: What power input does it require?
A: It accepts 12 to 48 VDC and offers redundant dual DC power inputs, drawing 555 mA at 12 VDC.

Q: How many EtherNet/IP connections can it handle?
A: It supports up to 8 simultaneous client/server connections with up to 16 queued requests.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
