Moxa MGate EIP3170 | EtherNet/IP to DF1 Gateway, 1-Port, 0-60°C

Authorised Moxa Partner

SKU:MGate EIP3170

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

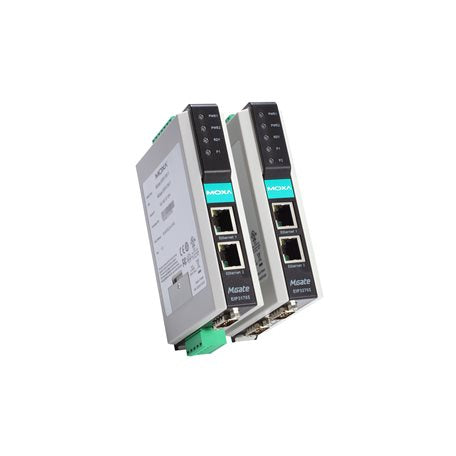

The Moxa MGate EIP3170 is a 1-port EtherNet/IP to DF1 protocol gateway that lets Allen-Bradley and Rockwell PLCs communicate with legacy serial devices over an EtherNet/IP network. This standard temperature model operates from 0 to 60°C and provides one RS-232/422 serial port, two 10/100BaseT(X) Ethernet ports and 12 to 48 VDC power input in an IP30 housing.

The gateway converts between EtherNet/IP (PCCC) and serial DF1, supports up to 8 simultaneous client connections, and is configured through the MGate Manager Windows utility or a Telnet console. Redundant dual DC power inputs and built-in Ethernet cascading simplify installation, while the integrated EtherNet/IP and DF1 traffic monitor assists with troubleshooting.

Features

- Converts between EtherNet/IP (PCCC) and serial DF1 for Rockwell Automation networks
- Supports 8 simultaneous EtherNet/IP client/server pairs with up to 16 queued requests
- Serial redirector keeps the original serial master/slave connection while connecting devices to Ethernet
- ProCOM utility enables control via COM port mapping
- Built-in EtherNet/IP and DF1 traffic monitor for easy troubleshooting
- Redundant dual DC power inputs
- Built-in Ethernet cascading for simplified wiring
- MGate Manager Windows utility for configuration and traffic monitoring

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 1 x RS-232/422 serial port (DB9 male for RS-232, terminal block for RS-422/485)
- 2 x 10/100BaseT(X) Ethernet ports (RJ45, auto MDI/MDI-X)
- EtherNet/IP (PCCC) to DF1 (transparent, full duplex) protocol conversion
- Serial baud rate: 1200 bps to 921.6 kbps
- Flow control: RTS/CTS, DTR/DSR (RS-232 only)
- Maximum client connections: 8
- Input voltage: 12 to 48 VDC, redundant dual inputs
- Input current: 435 mA @ 12 VDC
- Relay contact rating: 1 A @ 30 VDC resistive load
- Operating temperature: 0 to 60°C (32 to 140°F)
- Storage temperature: -40 to 85°C (-40 to 185°F)
- IP30 housing, plastic top cover with metal bottom plate
- Dimensions (without ears): 29 x 89.2 x 118.5 mm
- Weight: 360 g
- MTBF: 1,344,456 hrs (Telcordia SR332)
- Certifications: UL 508, EN 62368-1, FCC Part 15B Class A, DNV

FAQs

Q: What protocols does the Moxa MGate EIP3170 convert between?
A: It converts between EtherNet/IP (PCCC) on the Ethernet side and DF1 on the serial side, allowing Allen-Bradley and Rockwell PLCs to communicate with serial DF1 devices.

Q: What serial interfaces does the MGate EIP3170 support?
A: It has one serial port supporting RS-232 (DB9 male) and RS-422/485 via a terminal block, with baud rates from 1200 bps to 921.6 kbps.

Q: What is the operating temperature range of this model?
A: This is the standard temperature model, rated for 0 to 60°C (32 to 140°F).

Q: How is the MGate EIP3170 powered?
A: It accepts 12 to 48 VDC with redundant dual DC power inputs, drawing 435 mA at 12 VDC.

Q: How is the gateway configured?
A: Configuration is performed with the MGate Manager Windows utility or through a Telnet console. The device also supports DHCP client, SNMPv1 and ARP.

Q: How many simultaneous connections does the MGate EIP3170 support?
A: It supports up to 8 simultaneous EtherNet/IP client connections, with up to 16 queued requests.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
