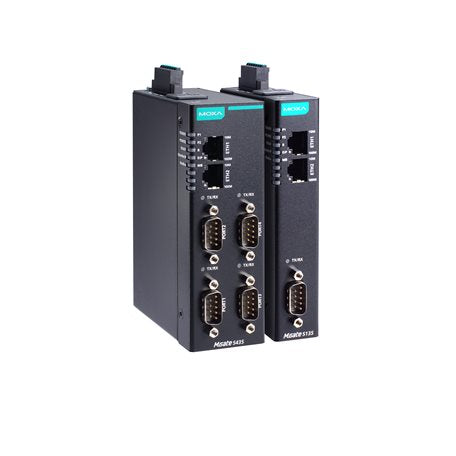

Moxa MGate 5435-T | MGate 5435 4-Port Modbus to EtherNet/IP Gateway, -40 to 75°C

Authorised Moxa Partner

SKU:MGate 5435-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The MGate 5435-T is a 4-port industrial protocol gateway that converts Modbus RTU/ASCII/TCP client traffic to EtherNet/IP adapter, allowing serial Modbus devices to be integrated into EtherNet/IP control systems. Its four RS-232/422/485 serial ports and wide temperature rating of -40 to 75°C make it suited to factory automation, energy and process environments where conditions are harsh.

The gateway supports up to 8 EtherNet/IP scanner connections, offers dual redundant 12 to 48 VDC power inputs with a relay output, and is configured through a web console. Built-in 2 kV serial isolation, a metal IP30 housing and a microSD slot for configuration backup help with reliable deployment and easy device replacement.

Features

- Protocol conversion between Modbus and EtherNet/IP
- Supports EtherNet/IP adapter and Modbus RTU/ASCII/TCP client modes
- Flexible deployment with Ethernet cascading and dual subnet
- Embedded traffic monitoring and diagnostic information for easy troubleshooting
- Web-based console configuration over HTTPS
- microSD card for configuration backup and duplication
- Dual redundant DC power inputs and 1 relay output
- 2 kV isolation protection on serial ports
- Wide -40 to 75°C operating temperature range
- Developed according to IEC 62443-4-2 with Secure Boot

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 4 x RS-232/422/485 serial ports (DB9 male), 2 kV isolation
- 2 x 10/100BaseT(X) Ethernet ports (RJ45), auto MDI/MDI-X
- Modbus RTU/ASCII/TCP client to EtherNet/IP adapter
- Up to 8 EtherNet/IP scanner connections (read/write)
- EtherNet/IP input and output data size: 496 bytes per connection, 3968 bytes total
- Modbus total input and output data size: 4000 bytes each
- Serial baudrate: 300 bps to 921.6 kbps
- 12 to 48 VDC input, 455 mA maximum, spring-type Euroblock terminal
- Relay output: 2 A @ 30 VDC resistive load
- microSD slot up to 32 GB
- Metal housing, IP30
- Dimensions: 42 x 90 x 130 mm, weight 403 g
- Operating temperature: -40 to 75°C
- Storage temperature: -40 to 85°C
- Humidity: 5 to 95% non-condensing
- Security: HTTPS (TLS 1.3), SNMPv3, AES-128, AES-256, SHA-256

FAQs

Q: What protocols does the MGate 5435-T convert between?
A: It converts Modbus RTU/ASCII/TCP client communication to EtherNet/IP adapter, so Modbus serial or TCP servers can be read and written by EtherNet/IP scanners such as PLCs.

Q: How many serial ports does it have and which standards are supported?
A: It has 4 DB9 male serial ports that support RS-232, RS-422 and RS-485, each with 2 kV built-in isolation. RS-485 pull-up/pull-down and terminator settings are software configurable.

Q: What is the difference between the -T model and the standard MGate 5435?
A: The -T model is rated for an operating temperature of -40 to 75°C, making it suitable for outdoor cabinets and harsh industrial environments.

Q: How many EtherNet/IP scanners can connect at once?
A: The gateway supports up to 8 EtherNet/IP scanner connections, with 496 bytes of input and 496 bytes of output data per connection.

Q: How is the gateway configured and backed up?
A: Configuration is done through the HTTPS web console or the Device Search Utility (DSU). A microSD slot of up to 32 GB can be used to back up and duplicate configurations.

Q: What power input does it use?
A: It accepts 12 to 48 VDC through a spring-type Euroblock terminal, with dual redundant power inputs and a relay output for alarm signalling.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
