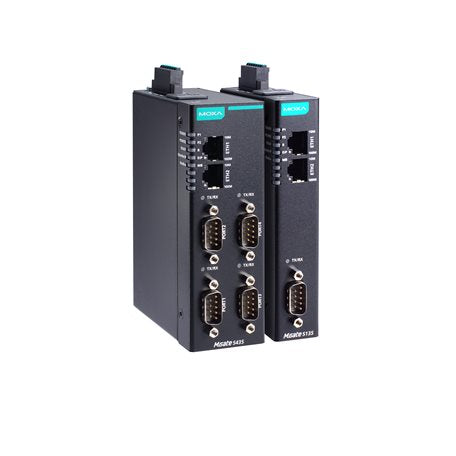

Moxa MGate 5435 | MGate 5135/5435 4-Port Modbus to EtherNet/IP Gateway, -10 to 60°C

Authorised Moxa Partner

SKU:MGate 5435

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa MGate 5435 is a 4-port Modbus RTU/ASCII/TCP to EtherNet/IP protocol gateway for industrial automation networks. It acts as a Modbus client (master) and an EtherNet/IP adapter, allowing serial and Ethernet Modbus devices to be integrated with EtherNet/IP controllers. This standard temperature model operates from -10 to 60°C.

Four RS-232/422/485 serial ports and dual 10/100BaseT(X) Ethernet ports with cascading and dual subnet support provide flexible deployment. Dual redundant DC power inputs, a relay output and a microSD card slot for configuration backup suit demanding plant-floor installations, while HTTPS, AES encryption and SNMPv3 support secure management.

Features

- Protocol conversion between Modbus and EtherNet/IP
- EtherNet/IP adapter support
- Modbus RTU/ASCII/TCP Client (Master) support
- Ethernet cascading and dual subnet for flexible deployment
- Embedded traffic monitoring and diagnostics for troubleshooting
- Web-based console configuration (HTTPS)
- microSD card for configuration backup and duplication
- Dual redundant DC power inputs and 1 relay output

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 4 x serial ports, RS-232/422/485, DB9 male
- 2 x 10/100BaseT(X) Ethernet ports (RJ45), auto MDI/MDI-X
- Baudrate 300 bps to 921.6 kbps
- Data bits 7, 8; stop bits 1, 2; parity None/Even/Odd/Space/Mark
- 1.5 kV built-in magnetic isolation on Ethernet ports
- Max. 8 EtherNet/IP scanner connections (read/write)
- Input data size 496 bytes/connection (total 3968 bytes)
- Total output data size 4000 bytes
- Operating temperature -10 to 60°C
- Dual redundant DC power inputs and 1 relay output
- microSD card slot
- Security: HTTPS, AES-128/256, SHA-256, SNMPv1/v2c/v3

FAQs

Q: What does the Moxa MGate 5435 do?
A: It converts between Modbus RTU/ASCII/TCP and EtherNet/IP, acting as a Modbus client (master) and an EtherNet/IP adapter so Modbus devices can communicate with EtherNet/IP controllers.

Q: How many serial ports does the MGate 5435 have and which interfaces are supported?
A: It has 4 serial ports with DB9 male connectors, supporting RS-232, RS-422 and RS-485.

Q: What is the operating temperature range of this model?
A: This standard model operates from -10 to 60°C. A separate -T variant is available for -40 to 75°C environments.

Q: Does the gateway support redundant power?
A: Yes. It has dual redundant DC power inputs and one relay output for alarm signalling.

Q: How many EtherNet/IP scanner connections are supported?
A: Up to 8 EtherNet/IP scanner connections with read/write access, with 496 bytes of input data per connection and 4000 bytes total output data.

Q: How can I back up the configuration?
A: The built-in microSD card slot allows configuration backup and duplication across multiple gateways.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
