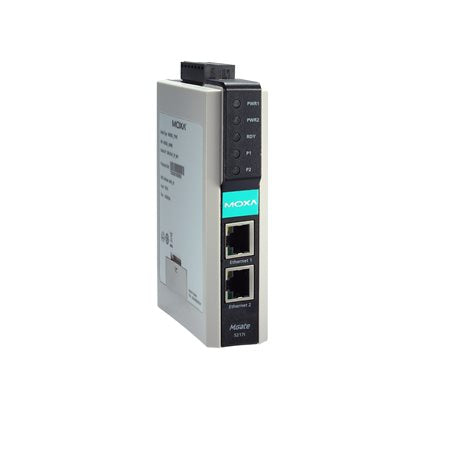

Moxa MGate 5217I-600-T | MGate 5217 Modbus to BACnet/IP Gateway, 600 Points, 2kV

Authorised Moxa Partner

SKU:MGate 5217I-600-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The MGate 5217I-600-T is a 600-point Modbus to BACnet/IP gateway that converts Modbus RTU, ASCII and TCP devices into BACnet/IP for integration with building management systems. It provides 2 x RS-232/422/485 serial ports and 2 x 10/100BaseT(X) Ethernet ports, with 2 kV serial isolation and a -40 to 75°C operating range for harsh industrial and building plant environments.

Virtual nodes let each Modbus device appear as a separate BACnet/IP device, and the embedded Modbus and BACnet/IP traffic monitor simplifies commissioning and troubleshooting. Dual AC/DC power input (12 to 48 VDC or 24 VAC), built-in Ethernet cascading and security features based on IEC 62443 make it a practical choice for HVAC, energy and process automation projects.

Features

- Converts Modbus RTU/ASCII/TCP to BACnet/IP for building and industrial automation
- Virtual nodes present each Modbus device as a separate BACnet/IP device
- Embedded Modbus and BACnet/IP traffic monitor and diagnostics for easier troubleshooting
- Built-in Ethernet cascading for simplified wiring
- 2 kV serial port isolation protection
- Dual AC/DC power input for flexible installation
- Wide -40 to 75°C operating temperature range
- Security features based on IEC 62443

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 2 x 10/100BaseT(X) Ethernet ports (RJ45), auto MDI/MDI-X
- 2 x RS-232/422/485 serial ports (DB9 male)
- Modbus RTU/ASCII/TCP to BACnet/IP conversion
- Ethernet industrial protocols: Modbus TCP Client (Master), BACnet/IP Server (Slave)
- 600 data points
- Serial baudrate: 50 bps to 921.6 kbps
- Data bits: 7, 8
- Parity: None, Even, Odd, Space, Mark
- Stop bits: 1, 2
- Flow control: RTS Toggle (RS-232 only), RTS/CTS, DTR/DSR
- RS-485 data direction control: ADDC (automatic data direction control)
- 2 kV serial isolation
- 1.5 kV built-in Ethernet magnetic isolation
- Power input: 12 to 48 VDC, 24 VAC
- Operating temperature: -40 to 75°C
- Configuration: Web Console (HTTP/HTTPS), Device Search Utility (DSU), Telnet Console
- Management: SNMPv1/v2c/v3, SNMP Trap, DHCP Client, DNS, SMTP, NTP Client

FAQs

Q: What does the MGate 5217I-600-T do?
A: It converts Modbus RTU, ASCII and TCP devices to BACnet/IP, allowing Modbus equipment to be integrated into a BACnet building management or supervisory system.

Q: What does the 600 in the model name mean?
A: It refers to the 600 data points supported by this model, which sets how many Modbus values can be mapped to BACnet/IP.

Q: Which serial interfaces does it support?
A: It has 2 DB9 male serial ports that support RS-232, RS-422 and RS-485, with automatic data direction control (ADDC) for RS-485.

Q: What power input does it accept?
A: It accepts 12 to 48 VDC or 24 VAC, so it can be powered from either DC or AC supplies.

Q: Can it operate in extreme temperatures?
A: Yes. The -T model is rated for operation from -40 to 75°C, suiting unconditioned plant rooms, cabinets and outdoor enclosures.

Q: Can each Modbus device appear separately in BACnet/IP?
A: Yes. The virtual nodes feature lets each Modbus device appear as a separate BACnet/IP device on the network.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
