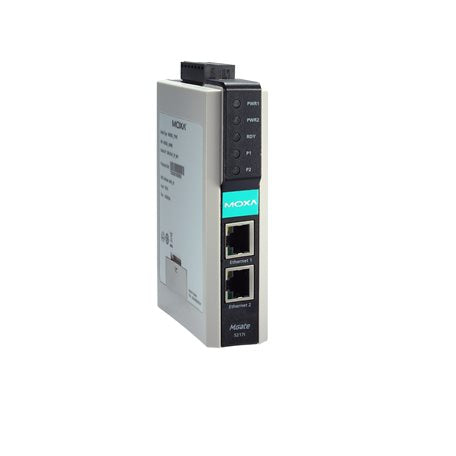

Moxa MGate 5217I-1200-T | MGate 5217I Modbus to BACnet/IP Gateway, 1200 Points, -40 to 75°C

Authorised Moxa Partner

SKU:MGate 5217I-1200-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The MGate 5217I-1200-T is a 2-port industrial protocol gateway that converts Modbus RTU/ASCII/TCP to BACnet/IP for building automation. It supports up to 1200 BACnet/IP data points and operates across a wide -40 to 75°C temperature range, making it suited to plant rooms, cabinets and other demanding installations.

Two RS-232/422/485 serial ports with 2 kV isolation connect Modbus serial devices, while dual 10/100 Ethernet ports support built-in cascading. It accepts 24 VAC or 12 to 48 VDC power, mounts on a DIN rail, and includes security features based on IEC 62443 such as HTTPS and SNMPv3.

Features

- Supports COV for fast data communication
- Virtual nodes let each Modbus device appear as a separate BACnet/IP device
- Modbus commands configured quickly by editing an Excel spreadsheet
- Embedded traffic monitoring and diagnostics for troubleshooting
- Built-in Ethernet cascading for easy wiring
- Dual AC/DC power inputs
- Security features based on IEC 62443
- 2 kV isolation protection on serial ports

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 2 x 10/100BaseT(X) Ethernet ports (RJ45), auto MDI/MDI-X
- 2 x RS-232/422/485 serial ports (DB9 male), 2 kV isolation
- 1200 BACnet/IP data points and up to 1200 Modbus commands
- Modbus RTU/ASCII/TCP to BACnet/IP conversion
- BACnet/IP client and server modes
- Serial baudrate 50 bps to 921.6 kbps
- Input voltage 24 VAC or 12 to 48 VDC, Euroblock terminal
- Operating temperature -40 to 75°C
- IP30 plastic housing, DIN-rail mountable
- Weight 380 g, MTBF 1,277,500 hrs

FAQs

Q: What protocols does the MGate 5217I-1200-T convert between?
A: It converts Modbus RTU/ASCII/TCP to BACnet/IP, acting as a Modbus master or client and a BACnet/IP server.

Q: How many BACnet data points does this model support?
A: The 1200 variant supports up to 1200 BACnet/IP data points and up to 1200 Modbus commands.

Q: What serial interfaces are available?
A: Two software-selectable RS-232/422/485 serial ports on DB9 male connectors, each with 2 kV built-in isolation.

Q: What power supply does it need?
A: It accepts 24 VAC or 12 to 48 VDC through a screw-fastened Euroblock terminal.

Q: Can it operate in harsh temperatures?
A: Yes. The -T model operates from -40 to 75°C.

Q: How is it mounted?
A: It has an IP30 plastic housing and mounts on a DIN rail.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
