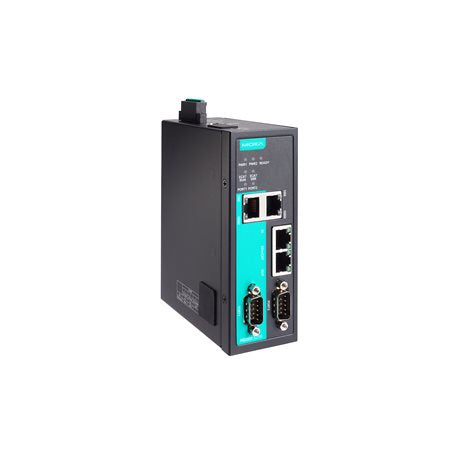

Moxa MGate 5216-T | Serial/Modbus-to-EtherCAT Gateway, 2-Port, -40 to 75°C

Authorised Moxa Partner

SKU:MGate 5216-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa MGate 5216-T is a 2-port serial/Modbus-to-EtherCAT protocol gateway that converts data between Modbus RTU/ASCII, proprietary serial protocols and EtherCAT. This -T model is rated for -40 to 75°C operation, making it suited to cold stores, outdoor cabinets and unconditioned plant rooms where the standard 0 to 60°C MGate 5216 would not be suitable.

It acts as an EtherCAT slave, so existing Modbus and serial devices can join EtherCAT networks without being replaced. Two software-selectable RS-232/422/485 serial ports, dual 10/100 Ethernet ports, 2 kV serial isolation, dual 12 to 48 VDC power inputs and a rugged IP30 metal housing with DIN-rail mounting make it a dependable choice for industrial automation deployments.

Features

- Converts data between Modbus RTU/ASCII, proprietary serial protocols and EtherCAT
- Acts as an EtherCAT slave, so Modbus or serial devices can join EtherCAT networks
- Supports Modbus RTU/ASCII client mode
- MicroPython support for programming proprietary serial protocols
- Security features based on IEC 62443-4-2
- Redundant dual DC power inputs with relay output
- Built-in serial isolation protection
- Rugged metal housing for industrial environments
- Wide -40 to 75°C operating temperature range

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 2 x serial ports (RS-232/422/485, DB9 male)
- Baudrate: 50 bps to 921.6 kbps
- 2 x 10/100BaseT(X) Ethernet ports (RJ45)
- EtherCAT slave mode
- Maximum data input and output: 512 bytes each
- Serial isolation: 2 kV built-in
- Power input: 12 to 48 VDC (dual inputs), 416 mA max
- 1 relay output
- Operating temperature: -40 to 75°C (-40 to 167°F)
- Storage temperature: -40 to 85°C (-40 to 185°F)
- Ambient relative humidity: 5 to 95% (non-condensing)
- IP30 metal housing, DIN-rail mount (wall mount with kit)

FAQs

Q: What does the -T suffix on the MGate 5216-T mean?
A: The -T denotes the wide temperature model, rated for -40 to 75°C operation. The standard MGate 5216 is rated for 0 to 60°C.

Q: What protocols does the MGate 5216-T convert between?
A: It converts data between Modbus RTU/ASCII, proprietary serial protocols and EtherCAT, operating as an EtherCAT slave.

Q: What serial interfaces does it provide?
A: Two DB9 male serial ports that support RS-232, RS-422 and RS-485, with baud rates from 50 bps to 921.6 kbps and 2 kV built-in isolation.

Q: How is the MGate 5216-T powered?
A: It accepts 12 to 48 VDC through dual redundant power inputs, drawing 416 mA maximum, and includes a relay output for alarm signalling.

Q: Can it be used with proprietary serial protocols?
A: Yes. The gateway supports MicroPython, allowing you to program custom handling for proprietary serial protocols.

Q: How is the MGate 5216-T mounted?
A: It has an IP30 metal housing designed for DIN-rail mounting, with wall mounting available using a mounting kit.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
