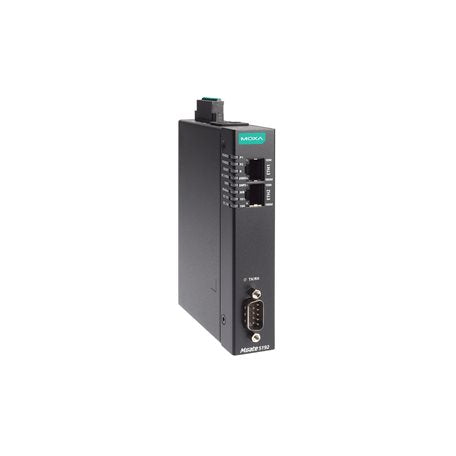

Moxa MGate 5192-T | MGate 5192 IEC 61850 Protocol Gateway, 1 Serial Port, -40 to 75°C

Authorised Moxa Partner

SKU:MGate 5192-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The MGate 5192-T is an industrial IEC 61850 protocol gateway with 1 serial port and a -40 to 75°C wide operating temperature range. It acts as an IEC 61850 MMS client and converts data to Modbus RTU/ASCII/TCP, DNP3 serial/TCP/UDP, IEC 60870-5-101 or IEC 60870-5-104, making it well suited to power substation and renewable energy deployments.

Housed in a rugged DIN-rail metal enclosure, it combines a 2 kV isolated RS-232/422/485 serial port with 2 x 10/100BaseT(X) Ethernet ports. It meets IEEE 1613 and IEC 61850-3 requirements and supports web console configuration, offline configuration via CSV file, and microSD card backup and duplication of settings.

Features

- Supports IEC 61850 MMS client
- Supports DNP3 serial/TCP/UDP outstation
- Supports IEC 60870-5-101 server and IEC 60870-5-104 server
- Supports Modbus RTU/ASCII/TCP Server (Slave)
- Ethernet cascading and dual subnet for flexible deployment
- Embedded traffic monitoring and diagnostic information for troubleshooting
- Web-based console configuration, with offline configuration via CSV file
- microSD card for configuration backup and duplication
- Dual redundant DC power inputs and 1 relay output
- Serial port with 2 kV isolation protection
- Compliance with IEC 62443-4-2 Security Level 2 requirements
- 40 to 75°C wide operating temperature

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 1 x RS-232/422/485 serial port (DB9 male), 2 kV isolation
- 2 x 10/100BaseT(X) Ethernet ports (RJ45), 1.5 kV magnetic isolation
- IEC 61850 MMS Client with up to 32 server connections and 5000 data objects
- Modbus RTU/ASCII/TCP Server, DNP3 Outstation, IEC 60870-5-101 Server, IEC 60870-5-104 Server
- Serial baudrate: 300 bps to 921.6 kbps
- Input voltage: 12 to 48 VDC, 455 mA max
- Spring-type Euroblock power connector, 1 relay output
- microSD slot up to 32 GB (SD 2.0 compatible)
- Metal housing, IP30
- Dimensions: 25 x 90 x 129.6 mm, weight 294 g
- Operating temperature: -40 to 75°C
- IEEE 1613 and IEC 61850-3 compliant
- Safety: EN 61010-2-201, UL 61010-2-201
- MTBF: 1,240,821 hrs (Telcordia SR332)

FAQs

Q: Which protocols does the MGate 5192-T convert between?
A: It operates as an IEC 61850 MMS client and converts data to Modbus RTU/ASCII/TCP, DNP3 serial/TCP/UDP, IEC 60870-5-101 or IEC 60870-5-104.

Q: What serial interface does it provide?
A: It has 1 x RS-232/422/485 serial port on a DB9 male connector with 2 kV built-in isolation. The RS-485 terminator is software configurable at 120 ohms.

Q: What is the operating temperature range?
A: The MGate 5192-T is rated for -40 to 75°C, suitable for harsh environments such as power substations and renewable energy sites.

Q: How is it powered?
A: It accepts 12 to 48 VDC through a spring-type Euroblock terminal, with dual redundant DC power inputs and a relay output.

Q: How is the gateway configured and backed up?
A: Configure it through the web console (HTTPS) or the Device Search Utility, with offline configuration via CSV file. A microSD slot up to 32 GB supports configuration backup and duplication.

Q: Does it meet power substation standards?
A: Yes, it is compliant with IEEE 1613 and IEC 61850-3 for power substations, and meets IEC 62443-4-2 Security Level 2 requirements.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
