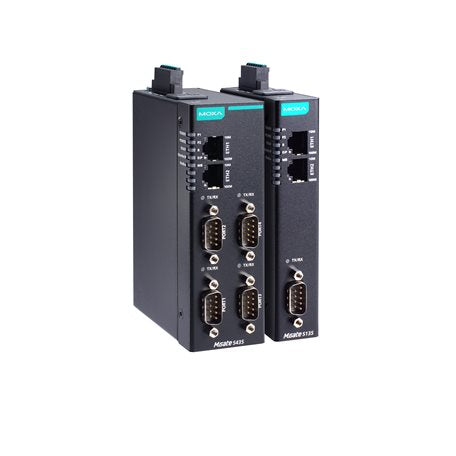

Moxa MGate 5135-T | MGate 5135 Modbus to EtherNet/IP Gateway, 1 Serial Port, -40 to 75°C

Authorised Moxa Partner

SKU:MGate 5135-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa MGate 5135-T is an industrial Modbus to EtherNet/IP protocol gateway with 1 serial port and a -40 to 75°C wide operating temperature range. It connects Modbus RTU, ASCII and TCP devices to an EtherNet/IP network, acting as a Modbus client on one side and an EtherNet/IP adapter on the other. The single RS-232/422/485 serial port and dual 10/100 Ethernet ports make it well suited to integrating serial instruments, meters and controllers into Rockwell-style EtherNet/IP environments.

Built for harsh industrial installations, the MGate 5135-T uses a compact metal DIN-rail housing with dual redundant 12 to 48 VDC power inputs and a relay output. The serial port carries 2 kV isolation, configuration is handled through a secure web console, and a microSD slot supports configuration backup and duplication. The design follows IEC 62443-4-2 with Secure Boot for added cybersecurity assurance.

Features

- Protocol conversion between Modbus and EtherNet/IP
- Supports EtherNet/IP adapter and Modbus RTU/ASCII/TCP client modes
- Ethernet cascading and dual subnet for flexible deployment
- Embedded traffic monitoring and diagnostics for easier troubleshooting
- Web-based console configuration with offline CSV configuration option
- microSD card for configuration backup and duplication
- Dual redundant DC power inputs and 1 relay output
- 40 to 75°C wide operating temperature for harsh environments
- 2 kV serial port isolation protection
- Developed to IEC 62443-4-2 with Secure Boot
- Status monitoring and fault protection functions

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 1 x RS-232/422/485 serial port (DB9 male), 2 kV isolation
- 2 x 10/100BaseT(X) Ethernet ports (RJ45), auto MDI/MDI-X
- Modbus RTU/ASCII/TCP client to EtherNet/IP adapter
- Modbus RTU/ASCII: up to 31 server connections, 128 commands per serial port
- Modbus TCP: up to 32 server connections, 128 commands
- EtherNet/IP: up to 4 scanner connections, 496 bytes input and output per connection
- Total input and output data size: 2048 bytes each
- Serial baudrate: 300 bps to 921.6 kbps
- 12 to 48 VDC input, dual redundant power inputs, 1 relay output
- Operating temperature: -40 to 75°C
- Metal housing, IP30, DIN-rail mountable
- Dimensions: 25 x 90 x 130 mm, weight 294 g
- microSD slot up to 32 GB
- Security: HTTPS (TLS 1.3), SNMPv3, AES-128/256, SHA-256
- MTBF: 1,240,821 hrs (Telcordia SR332)

FAQs

Q: What protocols does the MGate 5135-T convert between?
A: It converts between Modbus RTU/ASCII/TCP (gateway acts as client) and EtherNet/IP (gateway acts as adapter).

Q: What serial interfaces does it support?
A: It has one DB9 male serial port supporting RS-232, RS-422 and RS-485, with 2 kV built-in isolation and software-configurable RS-485 termination and pull resistors.

Q: What is the operating temperature range?
A: The -T model operates from -40 to 75°C, making it suitable for outdoor cabinets and harsh industrial sites.

Q: How is the gateway powered?
A: It accepts 12 to 48 VDC with dual redundant power inputs on a spring-type Euroblock terminal, and includes one relay output.

Q: How many Modbus devices can it connect to?
A: Up to 31 Modbus RTU/ASCII servers on the serial port and up to 32 Modbus TCP server connections, with up to 128 commands each.

Q: How do I configure it?
A: Configuration is done through the HTTPS web console or the Moxa Device Search Utility, with offline CSV configuration and microSD backup also supported.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
