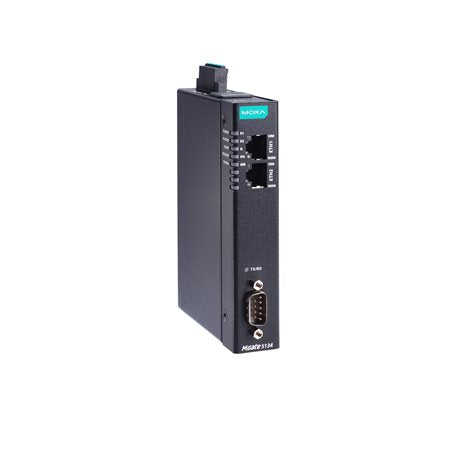

Moxa MGate 5134-T | MGate 5134 Modbus to PROFINET Gateway, -40 to 75°C

Authorised Moxa Partner

SKU:MGate 5134-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa MGate 5134-T is a 1-port industrial protocol gateway that converts Modbus RTU/ASCII/TCP to PROFINET. It operates as a Modbus client and a PROFINET IO device (class B), letting serial and Modbus TCP devices exchange data with PROFINET controllers. This -T wide temperature model is rated for -40 to 75°C, suiting cabinets and sites with extreme temperature swings.

The gateway provides 2 x 10/100BaseT(X) Ethernet ports with cascading, plus 1 x RS-232/422/485 serial port (DB9 male) with 2 kV isolation. Dual redundant 12 to 48 VDC power inputs and a relay output support dependable operation, while the metal IP30 housing mounts on a DIN rail.

Features

- Protocol conversion from Modbus to PROFINET
- Supports PROFINET IO device and Modbus RTU/ASCII/TCP client modes
- Ethernet cascading and dual subnet for flexible deployment
- Embedded traffic monitoring and diagnostics for easier troubleshooting
- Web console configuration with offline CSV configuration and GSDML export
- microSD card for configuration backup and duplication
- Dual redundant DC power inputs and 1 relay output
- Serial port with 2 kV isolation protection
- Wide -40 to 75°C operating temperature
- Developed according to IEC 62443-4-2 with Secure Boot, plus HTTPS and SNMPv3 support

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 1-port Modbus RTU/ASCII/TCP client to PROFINET IO device (class B) gateway
- 2 x 10/100BaseT(X) Ethernet ports (RJ45), auto MDI/MDI-X, with cascading
- 1 x RS-232/422/485 serial port, DB9 male, 2 kV isolation
- Serial baudrate: 300 bps to 921.6 kbps
- Modbus RTU/ASCII: up to 128 commands per serial port
- Modbus TCP client: up to 128 commands, 32 server connections
- Modbus input and output data size: 2048 bytes each
- PROFINET: up to 2 IO Controllers (shared devices), 1440 bytes input and output per controller
- microSD slot supporting up to 32 GB
- Input voltage: 12 to 48 VDC, dual redundant inputs, 455 mA max
- 1 relay output, 2 A at 30 VDC resistive load
- Operating temperature: -40 to 75°C (-40 to 167°F)
- Metal housing, IP30, DIN-rail mountable
- Dimensions: 25 x 90 x 129.6 mm, weight 294 g

FAQs

Q: What protocols does the MGate 5134-T convert between?
A: It converts Modbus RTU/ASCII/TCP, acting as a Modbus client, to PROFINET, acting as a PROFINET IO device (class B).

Q: What is the difference between the MGate 5134-T and the standard MGate 5134?
A: The -T model is the wide temperature version, rated for operation from -40 to 75°C.

Q: Which serial interfaces does it support?
A: One DB9 male serial port supporting RS-232, RS-422 and RS-485, with built-in 2 kV isolation and baudrates from 300 bps to 921.6 kbps.

Q: How is the gateway powered?
A: It has dual redundant 12 to 48 VDC power inputs on a spring-type Euroblock terminal, with 455 mA maximum input current and a relay output.

Q: How do I configure the MGate 5134-T?
A: Configuration is done through the web console (HTTPS) or the Device Search Utility. Offline configuration via CSV file and GSDML export are supported, and a microSD card can back up or duplicate settings.

Q: How many PROFINET controllers can connect to it?
A: It supports up to 2 PROFINET IO Controllers as shared devices, each with 1440 bytes of input and output data.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
