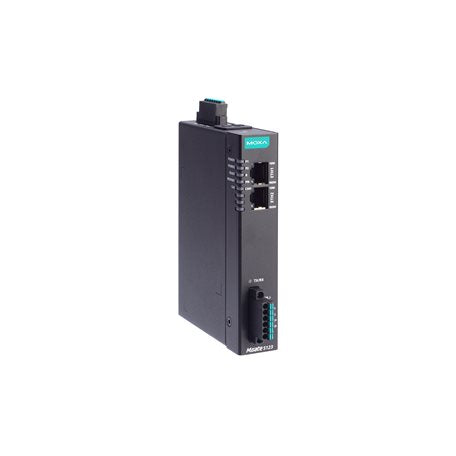

Moxa MGate 5123-T | MGate 5123 CAN to PROFINET Gateway, -40 to 75°C

Authorised Moxa Partner

SKU:MGate 5123-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The MGate 5123-T is a 1-port industrial protocol gateway that converts CANopen or J1939 CAN networks to PROFINET IO Device communications. It is the wide-temperature model rated for -40 to 75°C operation, suited to cabinets and outdoor enclosures where standard-temperature gateways cannot be deployed.

The gateway provides 2 x 10/100BaseT(X) RJ45 Ethernet ports, dual redundant 12 to 48 VDC power inputs with a relay output, and a microSD slot for configuration backup and duplication. It is housed in an IP30 metal enclosure and configured through an HTTPS web console, with security features developed according to IEC 62443-4-2 including Secure Boot.

Features

- Converts CANopen or J1939 to PROFINET network communications
- Wide operating temperature range of -40 to 75°C for harsh environments
- microSD card for configuration backup and duplication
- Dual redundant DC power inputs with 1 relay output
- CAN port with 2 kV isolation protection
- Developed according to IEC 62443-4-2 with Secure Boot
- HTTPS web console configuration with Device Search Utility (DSU)
- SNMPv1/v2c/v3, NTP client and TLS 1.3 secure management

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 1 x CAN port, Spring-type Euroblock terminal, ISO 11898-2
- CANopen master mode, up to 64 nodes, 10 kbps to 1 Mbps
- J1939 support at 250 kbps, 500 kbps and 1 Mbps
- PROFINET IO Device Class B, up to 2 IO controllers (shared devices)
- PROFINET data size: 1440 bytes input and 1440 bytes output per IO controller
- 2 x 10/100BaseT(X) RJ45 Ethernet ports, auto MDI/MDI-X, 1.5 kV magnetic isolation
- Software-configurable 120 ohm CAN terminator
- 12 to 48 VDC dual redundant power inputs, 455 mA max
- 1 relay output, 2 A at 30 VDC resistive load
- microSD slot, up to 32 GB
- Metal housing, IP30
- Dimensions: 25 x 90 x 129.6 mm, weight 294 g
- Operating temperature: -40 to 75°C
- Storage temperature: -40 to 85°C
- Humidity: 5 to 95% non-condensing
- Safety: EN 61010-2-201, UL 61010-2-201
- EMC: EN 61000-6-2/-6-4, FCC Part 15B Class A

FAQs

Q: What protocols does the MGate 5123-T convert between?
A: It converts CANopen (master mode) or J1939 on its CAN port to PROFINET IO Device on the Ethernet side, allowing CAN devices to be read and controlled by a PROFINET IO controller.

Q: What is the difference between the MGate 5123-T and the standard MGate 5123?
A: The -T model is the wide-temperature version, rated for -40 to 75°C operation, while the standard model has a narrower operating range. Functionality and port configuration are otherwise the same.

Q: How many CAN nodes can it manage in CANopen mode?
A: In CANopen master mode it supports up to 64 nodes, with 256 Receive PDOs and 256 Transmit PDOs, plus SDO support.

Q: Can it connect to more than one PROFINET IO controller?
A: Yes. It operates as a Class B IO Device and supports up to 2 IO controllers as shared devices, with 1440 bytes of input and output data per controller.

Q: What power supply does it require?
A: It accepts 12 to 48 VDC through dual redundant spring-type Euroblock inputs, drawing up to 455 mA, and includes 1 relay output.

Q: How do I back up or duplicate the configuration?
A: The microSD slot (up to 32 GB) can be used to back up the configuration and duplicate it onto other gateways, and the device is also configured through the HTTPS web console.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
