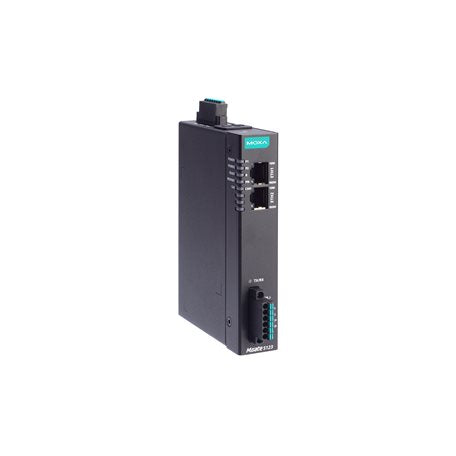

Moxa MGate 5123 | CAN-to-PROFINET Gateway, CANopen, J1939, -10 to 60°C

Authorised Moxa Partner

SKU:MGate 5123

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa MGate 5123 is a 1-port CAN-to-PROFINET protocol gateway that converts CANopen, J1939 and proprietary CAN (CAN 2.0A/B) networks to PROFINET. It operates as a PROFINET IO device (Class B), letting PROFINET controllers exchange data with CAN-based machinery, vehicles and drives. This standard model operates from -10 to 60°C and features a metal IP30 housing for control cabinet installation.

The gateway provides two 10/100BaseT(X) Ethernet ports, a CAN port with 2-kV isolation protection, dual redundant 12 to 48 VDC power inputs and a relay output. Configuration is handled through a web-based console, and a microSD slot supports configuration backup and duplication. Embedded traffic monitoring and diagnostic information simplify commissioning and troubleshooting, while security features such as HTTPS, secure boot and SNMPv3 help protect industrial networks.

Features

- Converts CANopen, J1939 and proprietary CAN (CAN 2.0A/B) to PROFINET
- Acts as a PROFINET IO device (Class B) supporting two IO controllers
- Embedded traffic monitoring and diagnostic information for easy troubleshooting
- Web-based console configuration over HTTPS, plus Device Search Utility (DSU)
- microSD card for configuration backup and duplication
- Dual redundant DC power inputs and 1 relay output
- CAN port with 2-kV isolation protection
- Security support including HTTPS (TLS 1.3), SNMPv3 and secure boot
- Compliance with IEC 62443-4-2 Security Level 2 requirements
- Compact metal IP30 housing for control cabinet installation

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 1 x CAN port, ISO 11898-2, spring-type Euroblock terminal
- 2 x 10/100BaseT(X) Ethernet ports (RJ45) with auto MDI/MDI-X
- Protocol conversion: CANopen, J1939 and proprietary CAN (CAN 2.0A/B) to PROFINET IO Device (Class B)
- CAN baudrate (CANopen, proprietary CAN): 10, 20, 50, 125, 250, 500, 800 kbps, 1 Mbps
- CAN baudrate (J1939): 250 kbps, 500 kbps, 1 Mbps
- CAN terminator: 120 ohms, software configurable
- CANopen master mode, up to 64 nodes, 256 Receive PDOs and 256 Transmit PDOs
- CANopen, J1939 and proprietary CAN data size: 2048 bytes input / 2048 bytes output
- PROFINET: up to 2 IO controllers (shared devices), 1440 bytes input and 1440 bytes output per controller
- Memory: microSD slot up to 32 GB (SD 2.0 compatible)
- Power input: 12 to 48 VDC, dual redundant, 455 mA max, spring-type Euroblock terminal
- Relay output: 2 A resistive load at 30 VDC
- Magnetic isolation protection: 1.5 kV on Ethernet ports
- Housing: metal, IP30
- Dimensions: 25 x 90 x 129.6 mm
- Weight: 294 g
- Operating temperature: -10 to 60°C
- Storage temperature: -40 to 85°C

FAQs

Q: Which CAN protocols does the MGate 5123 support?
A: It supports CANopen (master mode, up to 64 nodes), SAE J1939 and proprietary CAN using CAN 2.0A and 2.0B frame formats. All are converted to PROFINET.

Q: Does the MGate 5123 act as a PROFINET controller or a device?
A: It operates as a PROFINET IO device (Class B). It supports up to 2 IO controllers as shared devices, each with 1440 bytes of input and 1440 bytes of output data.

Q: What power supply does this gateway need?
A: It accepts 12 to 48 VDC and provides dual redundant power inputs on a spring-type Euroblock terminal. Maximum input current is 455 mA.

Q: What operating temperature range does this model support?
A: This standard model operates from -10 to 60°C. A separate wide-temperature variant is available for -40 to 75°C environments.

Q: How is the MGate 5123 configured?
A: Configuration is done through a web-based console over HTTPS or with the Moxa Device Search Utility (DSU). A microSD card slot allows configuration backup and duplication across devices.

Q: Can the CAN bus terminator be enabled without external resistors?
A: Yes. The 120 ohm CAN terminator is software configurable, so no external termination resistor is needed on this port.
