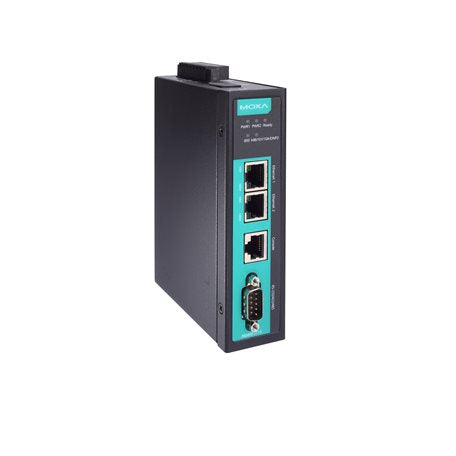

Moxa MGate 5119-T | MGate 5119 IEC 61850 Protocol Gateway, -40 to 75°C

Authorised Moxa Partner

SKU:MGate 5119-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The MGate 5119-T is an industrial IEC 61850 protocol gateway with 2 x 10/100BaseT(X) Ethernet ports and 1 x RS-232/422/485 serial port. It connects Modbus, DNP3, IEC 60870-5-101 and IEC 60870-5-104 devices to an IEC 61850 MMS network, and this wide-temperature model operates from -40 to 75°C for harsh substation and utility environments.

Supporting up to 1,200 data points and compliant with IEC 61850-3 Ed. 2.0 and IEEE 1613, the gateway includes a built-in SCL file generator for simplified configuration, embedded traffic monitoring for troubleshooting, and Ethernet cascading for easy wiring. A 2 kV isolated serial port, HTTPS (TLS 1.3) and security features based on IEC 62443 and NERC CIP support reliable, secure deployments in power automation systems.

Features

- IEC 61850 MMS server for integrating legacy devices into substation networks
- DNP3 serial/TCP master support
- IEC 60870-5-101 master (balanced/unbalanced) and IEC 60870-5-104 client support
- Modbus RTU/ASCII/TCP master/client support
- Built-in SCL file generator for easy configuration
- Embedded traffic monitoring and diagnostic information for easier troubleshooting
- Built-in Ethernet cascading for easy wiring
- 40 to 75°C operating temperature range for harsh environments
- Serial port with 2 kV isolation protection
- IEC 61850 MMS and DNP3 TCP protocol encryption
- Security features based on IEC 62443 and NERC CIP
- Web console and Device Search Utility (DSU) configuration

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 2 x 10/100BaseT(X) Ethernet ports (RJ45)
- Ethernet magnetic isolation protection: 1.5 kV (built-in)
- 1 x RS-232/422/485 serial port (DB9 male), 2 kV isolation
- Serial baudrate: 50 bps to 921.6 kbps
- Console port: RS-232, 8-pin RJ45
- IEC 61850 MMS Server mode, up to 16 client connections
- IEC 61850 max. datasets: 99, max. reports: 99
- Modbus RTU/ASCII/TCP master/client, up to 128 commands
- IEC 60870-5-101 master (balanced/unbalanced) and IEC 60870-5-104 client
- DNP3 serial/TCP master, up to 16 outstation connections
- 1,200 data points supported
- microSD slot: up to 32 GB
- Input voltage: 12 to 48 VDC, 455 mA @ 12 VDC
- Power connector: screw-fastened Euroblock terminal
- Metal housing, IP30
- Dimensions: 36 x 120 x 150 mm
- Weight: 517 g
- Operating temperature: -40 to 75°C
- Storage temperature: -40 to 85°C
- Ambient relative humidity: 5 to 95% (non-condensing)
- Standards: IEC 61850-3 Ed. 2.0, IEEE 1613, EN 55032/35, IEC 62368-1, UL 62368-1
- MTBF: 1,180,203 hrs (Telcordia SR332)

FAQs

Q: What protocols does the MGate 5119-T support?
A: It acts as an IEC 61850 MMS server and converts Modbus RTU/ASCII/TCP master/client, IEC 60870-5-101 master, IEC 60870-5-104 client and DNP3 serial/TCP master devices to IEC 61850.

Q: What is the operating temperature range?
A: The MGate 5119-T is the wide-temperature model and operates from -40 to 75°C (-40 to 167°F).

Q: How many data points can it handle?
A: The gateway supports up to 1,200 data points, including 1,200 IEC 61850 data objects.

Q: Which standards does it comply with for substation use?
A: It is compliant with IEC 61850-3 Edition 2.0 and IEEE 1613, making it suitable for power substation environments.

Q: What power input does it require?
A: It runs on 12 to 48 VDC via a screw-fastened Euroblock terminal, drawing 455 mA at 12 VDC.

Q: How is the gateway configured?
A: Configuration is done through the web console (HTTP/HTTPS) or the Device Search Utility (DSU), and a built-in SCL file generator simplifies IEC 61850 setup.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
