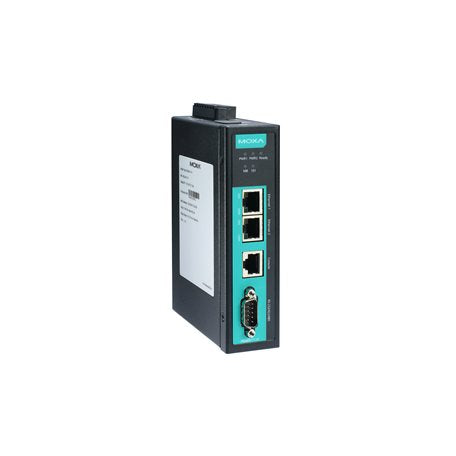

Moxa MGate 5114-T | Modbus to IEC 104 Gateway, -40 to 75C

Authorised Moxa Partner

SKU:MGate 5114-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa MGate 5114-T is an industrial Modbus to IEC 60870-5-104 protocol gateway built for harsh environments, with a wide operating temperature range of -40 to 75°C. It converts between Modbus RTU/ASCII/TCP, IEC 60870-5-101 and IEC 60870-5-104, supporting up to 2000 information objects, which makes it well suited to substation, utility and SCADA integration projects.

The gateway provides 2 x 10/100 Mbps Ethernet ports with built-in cascading and one RS-232/422/485 serial port with 2 kV isolation. It runs from redundant 12-48 VDC power inputs, includes a relay output and a microSD slot for configuration backup and event logs, and uses a metal IP30 housing. A web-based Quick Setup wizard and a protocol traffic monitor simplify commissioning and troubleshooting.

Features

- Protocol conversion between Modbus RTU/ASCII/TCP, IEC 60870-5-101 and IEC 60870-5-104
- Wide operating temperature range of -40 to 75°C
- Protocol traffic monitor for easier troubleshooting
- Web-based Quick Setup wizard for fast configuration
- microSD card for configuration backup, duplication and event logs
- Built-in Ethernet cascading for simplified wiring
- Redundant dual DC power inputs and relay output
- Serial port with 2 kV isolation protection
- Security features based on IEC 62443
- Configuration via web console (HTTP/HTTPS), Device Search Utility or Telnet

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 2 x 10/100BaseT(X) RJ45 Ethernet ports with built-in cascading
- 1 x RS-232/422/485 serial port (DB9 male), 2 kV isolation
- Serial baud rate: 50 bps to 921.6 kbps
- Modbus RTU/ASCII/TCP master/client and slave/server
- Modbus TCP: up to 32 client and 32 server connections, 128 commands
- IEC 60870-5-101 master/slave (balanced and unbalanced)
- IEC 60870-5-104 client/server, up to 32 connections each
- Up to 2000 information objects
- 1 x microSD slot, up to 32 GB
- Power input: 12-48 VDC, redundant dual inputs
- Relay alarm output: 2 A @ 30 VDC
- Operating temperature: -40 to 75°C (-40 to 167°F)
- Metal housing, IP30
- Dimensions: 36 x 105 x 140 mm, weight 507 g
- MTBF: 1,140,815 hrs (Telcordia SR332)

FAQs

Q: What protocols does the MGate 5114-T convert between?
A: It converts between Modbus RTU/ASCII/TCP, IEC 60870-5-101 and IEC 60870-5-104. It can operate as a Modbus master/client or slave/server and as an IEC 104 client or server.

Q: What is the difference between the MGate 5114-T and the standard MGate 5114?
A: The -T model is the wide-temperature version, rated for operation from -40 to 75°C, making it suitable for outdoor cabinets, substations and other harsh environments.

Q: How many information objects does it support?
A: The gateway supports up to 2000 information objects for both IEC 60870-5-101 and IEC 60870-5-104 operation.

Q: What serial interface does it provide?
A: One software-selectable RS-232/422/485 port on a DB9 male connector with 2 kV isolation and baud rates from 50 bps to 921.6 kbps.

Q: How is the MGate 5114-T powered?
A: It accepts 12-48 VDC through redundant dual power inputs, so it can stay online if one supply fails. A relay output is available for alarm signalling.

Q: Can the configuration be backed up?
A: Yes. The microSD slot (up to 32 GB) can be used to back up and duplicate configurations and store event logs.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
