Moxa MGate 5114 | Modbus to IEC 101/104 Gateway, 0-60°C

Authorised Moxa Partner

SKU:MGate 5114

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

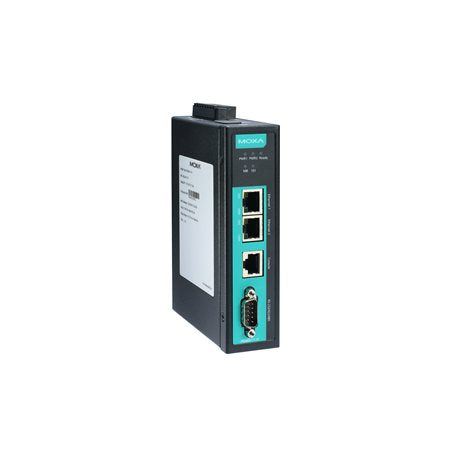

The Moxa MGate 5114 is a 1-port Modbus RTU/ASCII/TCP to IEC 60870-5-101/104 protocol gateway designed to connect field devices to power SCADA systems. This standard temperature model operates from 0 to 60°C and combines 2 x 10/100BaseT(X) Ethernet ports with built-in cascading and 1 x RS-232/422/485 serial port with 2 kV isolation.

It supports Modbus master/client and slave/server, IEC 60870-5-101 master/slave (balanced and unbalanced) and IEC 60870-5-104 client/server, with up to 2000 information objects per IEC protocol. Redundant 12 to 48 VDC power inputs, a relay output, a microSD slot for configuration backup and event logs, and a metal IP30 DIN-rail housing suit substation and industrial automation deployments.

Features

- Protocol conversion between Modbus RTU/ASCII/TCP, IEC 60870-5-101 and IEC 60870-5-104
- Web-based quick setup wizard for configuration
- Status monitoring and fault protection for easy maintenance
- Embedded traffic monitoring and diagnostics, with logs viewable in Wireshark
- microSD card for configuration backup/duplication and event logs
- Built-in Ethernet cascading for easy wiring
- Redundant dual DC power inputs and relay output
- Serial port with 2 kV isolation protection
- Security features based on IEC 62443

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 2 x 10/100BaseT(X) Ethernet ports (RJ45) with built-in cascading
- 1 x RS-232/422/485 serial port (DB9 male), 2 kV isolation
- Serial baudrate: 50 bps to 921.6 kbps
- Modbus RTU/ASCII/TCP master/client and slave/server
- IEC 60870-5-101 master/slave (balanced/unbalanced)
- IEC 60870-5-104 client/server, up to 2000 information objects
- Modbus TCP: up to 32 client and 32 server connections
- Input voltage: 12 to 48 VDC redundant dual inputs, relay output
- microSD slot up to 32 GB
- Operating temperature: 0 to 60°C
- Housing: metal, IP30, DIN-rail mount
- Dimensions: 36 x 105 x 140 mm, weight 507 g
- Safety: EN 62368-1, UL 508; ATEX, Class I Division 2, IECEx
- Package: gateway, RJ45-to-DB9 console cable, DIN-rail kit, quick installation guide

FAQs

Q: Which protocols does the MGate 5114 convert between?
A: It converts between Modbus RTU/ASCII/TCP, IEC 60870-5-101 and IEC 60870-5-104, supporting both master/client and slave/server roles for Modbus.

Q: What serial interfaces does it support?
A: It has one DB9 male serial port that supports RS-232, RS-422 and RS-485, with 2 kV isolation and baudrates from 50 bps to 921.6 kbps.

Q: What operating temperature range does this model support?
A: This standard model operates from 0 to 60°C. It is the non-T variant intended for standard temperature environments.

Q: How is the MGate 5114 powered?
A: It accepts 12 to 48 VDC through a screw-fastened Euroblock terminal with redundant dual power inputs, and it includes a relay output.

Q: How many IEC 60870-5-104 information objects are supported?
A: The gateway supports up to 2000 information objects for both IEC 60870-5-101 and IEC 60870-5-104.

Q: How is the gateway configured and backed up?
A: Configuration is done through the web console (HTTP/HTTPS), Device Search Utility, Telnet or serial console. A microSD slot (up to 32 GB) supports configuration backup and duplication, and event logs.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
