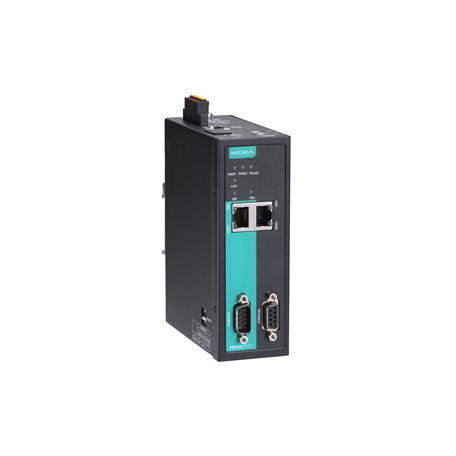

Moxa MGate 5111-T | MGate 5111 PROFIBUS Gateway, Modbus/PROFINET/EtherNet/IP, -40 to 75°C

Authorised Moxa Partner

SKU:MGate 5111-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa MGate 5111-T is an industrial protocol gateway that converts Modbus RTU/ASCII/TCP, EtherNet/IP or PROFINET data to a PROFIBUS DP-V0 slave. This -T model is the wide-temperature version, rated for -40 to 75°C operation, making it suited to unheated cabinets, outdoor enclosures and harsh plant environments. It provides two 10/100BaseT(X) Ethernet ports, one RS-232/422/485 serial port and one PROFIBUS DP-V0 slave port supporting 9600 bps to 12 Mbps.

Configuration is handled through a web-based wizard, with a microSD slot for configuration backup, duplication and event logs. Redundant 12 to 48 VDC power inputs, a relay output, 2 kV serial isolation and a metal IP30 DIN-rail housing support reliable long-term deployment. Built-in traffic monitoring and diagnostic information help with troubleshooting, and security features are based on IEC 62443.

Features

- Converts Modbus, PROFINET or EtherNet/IP to PROFIBUS
- Supports PROFIBUS DP-V0 slave
- Supports Modbus RTU/ASCII/TCP master/client and slave/server
- Supports EtherNet/IP Adapter and PROFINET IO Device
- Effortless configuration via web-based wizard
- Built-in Ethernet cascading for easy wiring
- Embedded traffic monitoring and diagnostic information for troubleshooting
- Status monitoring and fault protection for easy maintenance
- microSD card for configuration backup, duplication and event logs
- Redundant dual DC power inputs and 1 relay output
- Serial port with 2 kV isolation protection
- Security features based on IEC 62443

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 2 x 10/100BaseT(X) Ethernet ports (RJ45), auto MDI/MDI-X
- 1 x RS-232/422/485 serial port (DB9 male), 50 bps to 921.6 kbps
- 1 x PROFIBUS DP-V0 slave port (DB9 female), 9600 bps to 12 Mbps
- Modbus RTU/ASCII/TCP master/client and slave/server
- PROFINET IO Device and EtherNet/IP Adapter
- PROFIBUS: up to 24 I/O modules, 244 bytes input and output data
- 12 to 48 VDC redundant dual power inputs, 1 relay output
- microSD slot, up to 32 GB
- 2 kV isolation on serial and PROFIBUS ports, 1.5 kV Ethernet magnetic isolation
- Metal housing, IP30, DIN-rail mount
- Dimensions: 45.8 x 105 x 134 mm, weight 589 g
- Operating temperature: -40 to 75°C
- Hazardous locations: ATEX, Class I Division 2, IECEx
- MTBF: 718,131 hrs

FAQs

Q: What does the MGate 5111-T convert between?
A: It converts Modbus RTU/ASCII/TCP, EtherNet/IP or PROFINET data to a PROFIBUS DP-V0 slave, allowing devices on those networks to exchange data with a PROFIBUS master.

Q: What operating temperature range does the -T model support?
A: The MGate 5111-T is rated for -40 to 75°C, the wide-temperature version of the MGate 5111 Series.

Q: Which PROFIBUS role does this gateway take?
A: It operates as a PROFIBUS DP-V0 slave on a DB9 female port, supporting baud rates from 9600 bps to 12 Mbps and up to 24 I/O modules.

Q: What power input does it require?
A: It accepts 12 to 48 VDC through redundant dual inputs on a spring-type Euroblock terminal, and includes one relay output.

Q: How is the gateway configured?
A: Configuration is done through a web-based wizard over HTTP/HTTPS, with Telnet console and the Device Search Utility also available. A microSD card can store configuration backups and event logs.

Q: Can it be mounted in a control cabinet?
A: Yes. It has a metal IP30 housing and ships with a DIN-rail kit for cabinet mounting.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
