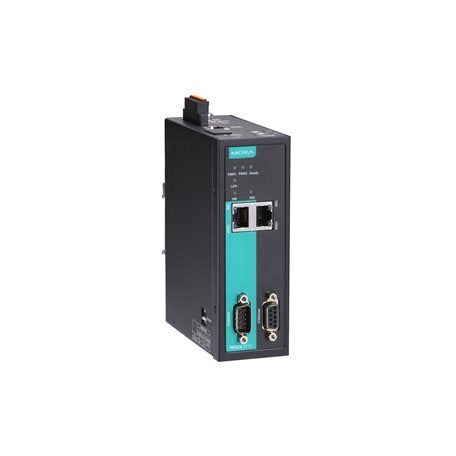

Moxa MGate 5111 | Modbus/PROFINET/EtherNet/IP to PROFIBUS Gateway, 0-60°C

Authorised Moxa Partner

SKU:MGate 5111

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa MGate 5111 is a 1-port industrial protocol gateway that converts Modbus RTU/ASCII/TCP, PROFINET or EtherNet/IP to a PROFIBUS DP V0 slave. This is the standard 0 to 60°C model, suited to control room and cabinet deployments in industrial automation networks where legacy PROFIBUS devices need to connect to Ethernet-based controllers.

A web-based configuration wizard simplifies setup, while two 10/100 Ethernet ports with built-in cascading reduce wiring. Redundant dual DC power inputs with a relay output, isolation protection on the serial and Ethernet ports, and a microSD card slot for configuration backup and event logs support reliable day-to-day operation. Security features based on IEC 62443 with HTTPS and SSH are supported.

Features

- Converts Modbus, PROFINET or EtherNet/IP to PROFIBUS
- Effortless configuration via web-based wizard
- Built-in Ethernet cascading for easy wiring
- Embedded traffic monitoring and diagnostic information for troubleshooting
- Status monitoring and fault protection for easy maintenance
- microSD card for configuration backup, duplication and event logs
- Security features based on IEC 62443, with HTTPS and SSH supported

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 1 x PROFIBUS DP V0 slave serial port
- 2 x 10/100BaseT(X) Ethernet ports (RJ45) with built-in cascading
- 1.5 kV magnetic isolation on Ethernet ports
- Serial port with 2 kV isolation protection
- Modbus RTU/ASCII/TCP master/client and slave/server
- Modbus: up to 128 commands, 2048 bytes input / 2048 bytes output
- EtherNet/IP Adapter mode: 496 bytes input / 496 bytes output
- PROFINET IO Device mode: 512 bytes input / 512 bytes output
- Redundant dual DC power inputs with 1 relay output
- microSD card slot for configuration backup and event logs
- Operating temperature 0 to 60°C (standard model)

FAQs

Q: Which protocols does the MGate 5111 convert to PROFIBUS?
A: It converts Modbus RTU/ASCII/TCP, PROFINET or EtherNet/IP to a PROFIBUS DP V0 slave.

Q: What operating temperature range does this model support?
A: This standard model operates from 0 to 60°C. The -T variant is the wide temperature model, rated -40 to 75°C.

Q: How is the gateway configured?
A: It uses a web-based configuration wizard, so no specialised software is needed for basic setup.

Q: Does it support redundant power?
A: Yes. It has redundant dual DC power inputs and a relay output for fault signalling.

Q: How much process data can it handle in each protocol mode?
A: EtherNet/IP Adapter mode supports 496 bytes input and 496 bytes output, PROFINET IO Device mode supports 512 bytes each way, and Modbus supports up to 128 commands with 2048 bytes each way.

Q: Can configuration be backed up?
A: Yes. The microSD card slot allows configuration backup and duplication, and also stores event logs.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
