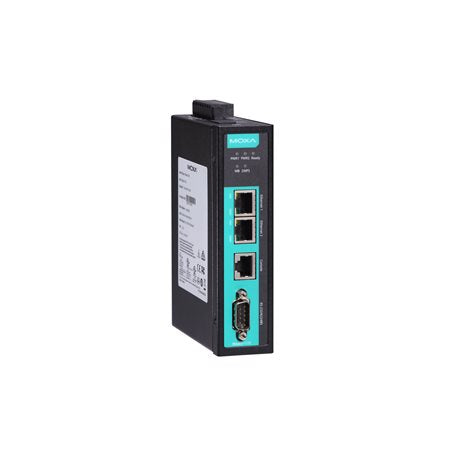

Moxa MGate 5109-T | MGate 5109 Modbus to DNP3 Gateway, -40 to 75°C

Authorised Moxa Partner

SKU:MGate 5109-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The MGate 5109-T is a 1-port industrial protocol gateway that converts between Modbus RTU/ASCII/TCP and DNP3 serial/TCP/UDP networks. This wide-temperature model operates from -40 to 75°C, making it suited to substations, outdoor cabinets and other harsh utility and SCADA environments where standard gateways are not rated to run.

It pairs a DB9 RS-232/422/485 serial port with 2 x 10/100 Mbps Ethernet ports with built-in cascading, so devices can be daisy-chained without an extra switch. A metal IP30 DIN-rail housing, 2 kV serial isolation, redundant dual 12-48 VDC power inputs and a relay output support dependable field deployment, while a web-based configuration wizard and built-in protocol traffic monitor simplify commissioning and diagnostics.

Features

- Converts between Modbus RTU/ASCII/TCP and DNP3 serial/TCP/UDP
- Supports DNP3 master and outstation (Level 2) operation
- Auto detection for DNP3 serial outstations
- Time synchronisation through DNP3
- Transparent and agent conversion modes
- Web-based configuration wizard for quick setup
- Built-in Modbus and DNP3 protocol traffic monitor and diagnostics
- Built-in Ethernet cascading for simplified wiring
- microSD card for configuration backup, duplication and event logs
- Redundant dual DC power inputs and relay output for fault alerting
- 2 kV serial port isolation protects connected equipment
- Security features based on IEC 62443
- Wide -40 to 75°C operating temperature range

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 1 x RS-232/422/485 serial port (DB9 male), software selectable, 2 kV isolation
- 2 x 10/100BaseT(X) Ethernet ports (RJ45), Auto MDI/MDIX, built-in cascading
- Ethernet magnetic isolation protection: 1.5 kV
- Modbus RTU/ASCII/TCP master/client and slave/server
- DNP3 serial/TCP/UDP master and outstation (Level 2)
- DNP3 master mode capacity: up to 26,600 data points
- Max. 100 Modbus commands
- Modbus TCP connections: 32 as master, 16 as slave
- Serial baud rate: 50 bps to 921.6 kbps
- Redundant dual 12-48 VDC inputs via screw-fastened Euroblock terminal
- 1 relay output
- Operating temperature: -40 to 75°C
- Metal housing, IP30, DIN-rail mountable
- Dimensions: 36 x 105 x 140 mm, weight 507 g
- microSD card slot for configuration backup and logs

FAQs

Q: What protocols does the MGate 5109-T convert between?
A: It converts between Modbus RTU/ASCII/TCP (master/client and slave/server) and DNP3 serial/TCP/UDP (master and outstation, Level 2), allowing Modbus devices to communicate with DNP3 SCADA systems and vice versa.

Q: What operating temperature range does this model support?
A: The MGate 5109-T is the wide-temperature model, rated for -40 to 75°C, suitable for outdoor cabinets, substations and other harsh industrial environments.

Q: Which serial interfaces are available?
A: One DB9 male serial port that is software selectable between RS-232, RS-422 and RS-485, with 2 kV built-in isolation and baud rates from 50 bps to 921.6 kbps.

Q: Can the gateway be powered redundantly?
A: Yes. It has redundant dual 12-48 VDC power inputs on a screw-fastened Euroblock terminal, plus a relay output for alarm signalling.

Q: How many DNP3 data points can it handle?
A: In DNP3 master mode it supports up to 26,600 data points.

Q: How is the gateway configured and backed up?
A: Configuration is done through a web-based wizard. A microSD card slot allows configuration backup and duplication across units, and also stores event logs.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
