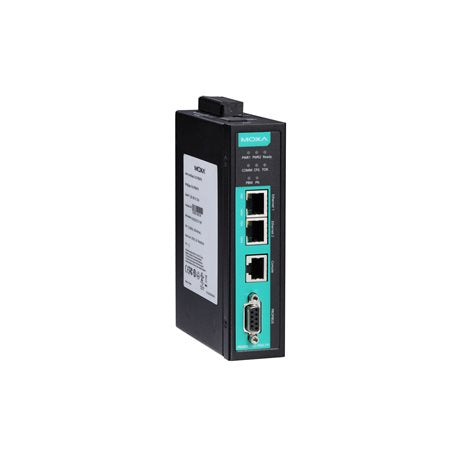

Moxa MGate 5102-PBM-PN-T | MGate 5102 PROFIBUS Master to PROFINET Gateway, -40 to 75°C

Authorised Moxa Partner

SKU:MGate 5102-PBM-PN-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The MGate 5102-PBM-PN-T is a wide temperature PROFIBUS to PROFINET protocol gateway that connects a PROFIBUS DP-V1 master network to PROFINET IO controllers. It lets PROFIBUS PLCs, drives and field devices communicate with a PROFINET network without replacing existing equipment, and it is rated for operation from -40 to 75°C for harsh industrial environments.

The gateway provides one PROFIBUS DP-V1 master port with 2 kV isolation, two 10/100BaseT(X) Ethernet ports with built-in cascading, redundant dual DC power inputs and a relay output. Automatic scanning of PROFIBUS devices, a web-based GUI for I/O data visualisation and a microSD slot for configuration backup and event logs simplify commissioning and maintenance in DIN-rail installations.

Features

- Protocol conversion between PROFIBUS DP-V1 master and PROFINET IO device
- Automatic scan of PROFIBUS devices for easy configuration
- Web-based GUI for I/O data visualisation
- Built-in Ethernet cascading for simplified wiring
- microSD card for configuration backup, duplication and event logs
- Embedded I/O monitoring and diagnostic information for easier troubleshooting
- Status monitoring and fault protection for easy maintenance
- Redundant dual DC power inputs and 1 relay output
- 40 to 75°C wide operating temperature for harsh environments
- 2 kV isolation protection on the PROFIBUS serial port
- Security features based on IEC 62443

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 1 x PROFIBUS DP-V1 Master port, DB9 female, 9600 bps to 12 Mbps, 2 kV isolation
- PROFINET IO Device on the Ethernet side
- 2 x 10/100BaseT(X) Ethernet ports, RJ45, auto MDI/MDI-X, built-in cascading
- Magnetic isolation protection: 1.5 kV on Ethernet ports
- Redundant dual DC power inputs, 12-48 VDC, with 1 relay output
- Operating temperature: -40 to 75°C (-40 to 167°F)
- Storage temperature: -40 to 85°C (-40 to 185°F)
- Ambient relative humidity: 5 to 95% (non-condensing)
- microSD slot for configuration backup and event logs
- RS-232 console port, 8-pin RJ45, 115200, n, 8, 1
- Configuration via Web Console (HTTP/HTTPS), Device Search Utility, MGate Manager or Telnet
- Management protocols: SNMPv1/v2c/v3, DHCP, DNS, NTP Client, SSH, SMTP, ARP
- DIN-rail mounting, IP30 rating
- EMI: CISPR 32, FCC Part 15B Class B; EMC: EN 55032/35; Safety: IEC 60950-1

FAQs

Q: What does the MGate 5102-PBM-PN-T connect?
A: It connects a PROFIBUS DP-V1 master network to a PROFINET IO network, so PROFIBUS PLCs, drives and field devices can exchange data with PROFINET controllers.

Q: How does the -T model differ from the standard MGate 5102-PBM-PN?
A: The -T model has an extended operating temperature range of -40 to 75°C, suiting outdoor cabinets, cold storage and other harsh environments.

Q: Does it act as a PROFIBUS master or slave?
A: It operates as a PROFIBUS DP-V1 master on the serial side and as a PROFINET IO device on the Ethernet side.

Q: What power input does it require?
A: It has redundant dual DC power inputs accepting 12-48 VDC, plus one relay output for fault signalling.

Q: How is the gateway configured?
A: Use the Web Console over HTTP/HTTPS, the Device Search Utility, MGate Manager or a Telnet console. It can also scan PROFIBUS devices automatically, and configurations can be backed up to the microSD card.

Q: Can I daisy-chain devices through the gateway?
A: Yes. The two 10/100BaseT(X) Ethernet ports provide built-in cascading, so another Ethernet device can be connected through the gateway to simplify wiring.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
