Moxa MGate 5102-PBM-PN | MGate 5102 PROFIBUS Master to PROFINET Gateway, 0-60°C

Authorised Moxa Partner

SKU:MGate 5102-PBM-PN

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

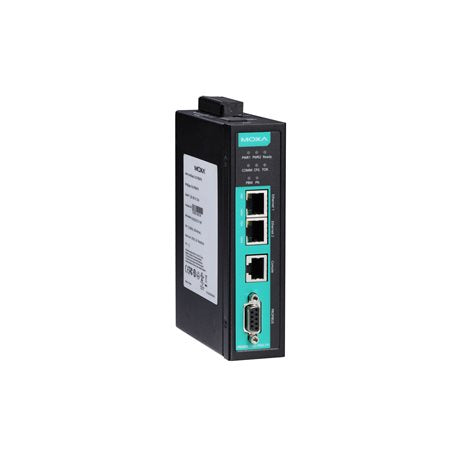

The Moxa MGate 5102-PBM-PN is a 1-port industrial protocol gateway that converts between a PROFIBUS DP-V1 master and a PROFINET IO device. It lets PROFIBUS PLCs, drives and field devices connect to a PROFINET host without replacing existing equipment. This standard temperature model operates from 0 to 60°C and is housed in a rugged IP30 metal DIN-rail enclosure.

The gateway provides two 10/100BaseT(X) Ethernet ports with built-in cascading, 1024 bytes of input and output data, redundant 12 to 48 VDC power inputs and a relay output. A microSD slot supports configuration backup, event logs and data buffering, while a web console, SNMP and HTTPS/SSH support simplify monitoring and secure remote maintenance.

Features

- Protocol conversion between PROFIBUS and PROFINET
- Supports PROFINET IO device and PROFIBUS DP-V1 master
- Automatic scan of PROFIBUS devices for easy configuration
- Web-based GUI for I/O data visualisation
- Built-in Ethernet cascading for simplified wiring
- microSD card for configuration backup, event logs and data buffering
- Embedded I/O monitoring and diagnostic information
- Redundant dual DC power inputs and 1 relay output
- Serial port with 2 kV isolation protection
- Exports PROFIBUS I/O modules to a GSDML file for PROFINET controller configuration
- HTTPS and SSH encrypted remote maintenance

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 1 x PROFIBUS DP-V1 Master port (DB9 female, 9600 bps to 12 Mbps, 2 kV isolation)
- PROFINET IO Device mode
- 2 x 10/100BaseT(X) Ethernet ports (RJ45, built-in cascading)
- 1024 bytes input / 1024 bytes output data (PROFIBUS and PROFINET)
- 12 to 48 VDC redundant dual power inputs, 1 relay output
- microSD slot up to 32 GB
- Operating temperature 0 to 60°C
- IP30 metal housing, DIN-rail mount
- Dimensions 36 x 105 x 140 mm, weight 500 g
- Hazardous location approvals: ATEX, Class I Division 2, IECEx

FAQs

Q: What does the MGate 5102-PBM-PN do?
A: It acts as a PROFIBUS DP-V1 master and a PROFINET IO device, converting data between the two networks so PROFIBUS devices can be controlled from a PROFINET controller.

Q: How do I configure it in a PROFINET controller?
A: The gateway exports the PROFIBUS I/O modules to a GSDML file, which you import into your PROFINET controller engineering tool.

Q: What operating temperature range does this model support?
A: This standard model operates from 0 to 60°C. It is intended for installations that do not require an extended temperature range.

Q: How much process data can it handle?
A: It supports 1024 bytes of input and 1024 bytes of output data on both the PROFIBUS and PROFINET sides.

Q: What power supply does it need?
A: It accepts 12 to 48 VDC on redundant dual power inputs via a screw-fastened Euroblock terminal, and includes one relay output.

Q: Can I back up the gateway configuration?
A: Yes. The microSD slot (up to 32 GB) supports configuration backup and duplication, event logs and data buffering.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
