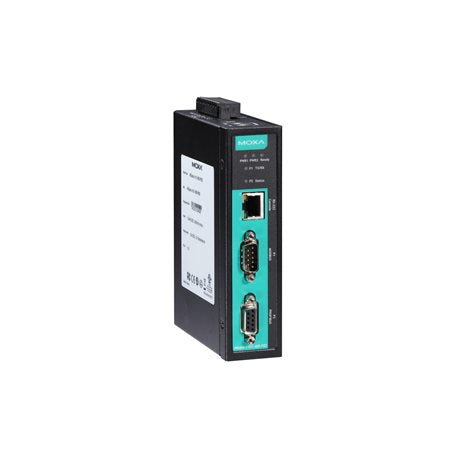

Moxa MGate 4101I-MB-PBS | MGate 4101-MB-PBS Modbus to PROFIBUS Gateway, 2 kV Isolation, 0-60°C

Authorised Moxa Partner

SKU:MGate 4101I-MB-PBS

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa MGate 4101I-MB-PBS is a 1-port Modbus to PROFIBUS DP slave protocol gateway that lets Modbus RTU/ASCII serial devices connect to PROFIBUS PLCs such as the Siemens S300/S400. This -I model adds 2 kV isolation on the serial signals and is the standard-temperature version, rated for 0 to 60°C operation.

The serial port is software-selectable between RS-232, RS-422 and RS-485, and the unit accepts redundant dual DC power inputs from 12 to 48 VDC. A relay output provides power-off warning, and enhanced surge protection on the serial and power connections suits industrial control cabinets. Configuration is handled through a Windows utility with automatic configuration, via an RJ45 RS-232 console port.

Features

- Protocol conversion between Modbus RTU/ASCII and PROFIBUS DP slave
- Windows configuration utility with automatic configuration
- Redundant dual DC power inputs
- Enhanced surge protection for serial and power
- 2 kV isolation for serial signals
- Power-off warning by relay output
- Software-selectable RS-232/422/485 communication

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 1 x Modbus serial port (DB9 male), software-selectable RS-232/422/485
- 1 x PROFIBUS DP slave port (DB9 female)
- 2 kV isolation for serial signals
- Redundant dual DC power inputs, 12-48 VDC
- Relay output for power-off warning
- RJ45 RS-232 console port for configuration
- Operating temperature 0 to 60°C (standard-temperature model)

FAQs

Q: What does the MGate 4101I-MB-PBS convert between?
A: It converts Modbus RTU/ASCII serial communication to a PROFIBUS DP slave interface, allowing Modbus devices to be read by PROFIBUS PLCs.

Q: Which PLCs can it connect to?
A: It is designed to link Modbus devices to PROFIBUS PLCs such as the Siemens S300 and S400.

Q: What serial interfaces does the Modbus port support?
A: The DB9 male port is software-selectable between RS-232, RS-422 and RS-485.

Q: What does the I in the model name mean?
A: The I designates 2 kV isolation protection on the serial signals, which helps protect equipment in electrically noisy industrial environments.

Q: What power supply does it need?
A: It accepts redundant dual DC power inputs in the 12 to 48 VDC range, and a relay output can signal a power-off condition.

Q: What is the operating temperature range?
A: This standard-temperature model operates from 0 to 60°C.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
