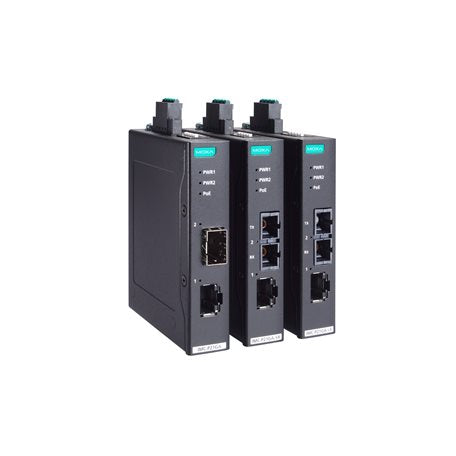

Moxa IMC-P21GA-G2-SX-SC | IMC-P21GA-G2 PoE+ Media Converter, 1000BaseSX, Multi-mode SC, 550 m

Authorised Moxa Partner

SKU:IMC-P21GA-G2-SX-SC

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The IMC-P21GA-G2-SX-SC is an industrial PoE+ Gigabit Ethernet-to-fibre media converter that links a 10/100/1000BaseT(X) PoE+ copper port to a 1000BaseSX multi-mode SC fibre port, with a typical reach of 550 m on OM1, OM2, OM3 and OM4 multi-mode fibre. It can power remote devices such as IP cameras and wireless access points with up to 30 W in standard mode, or up to 36 W in high-power mode.

Built for demanding installations, it has a metal housing, DIN-rail mounting and dual power inputs on a removable terminal block. The PoE+ port complies with IEEE 802.3af and 802.3at, and the unit supports PoE diagnostics and Link Fault Pass-through to help keep fibre-linked field devices online and easy to troubleshoot.

Features

- 10/100/1000BaseT(X) auto-negotiation and auto-MDI/MDI-X
- IEEE 802.3af (PoE) and 802.3at (PoE+) standard compliance
- Up to 36 W output on the PoE+ port for high-power devices (30 W in standard mode)
- Store-and-forward and pass-through modes
- PoE diagnostics and Link Fault Pass-through
- Dual power inputs on a removable terminal block
- Supports IEEE 802.3, 802.3u and 802.3x

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 1 x 1000BaseSX port (multi-mode SC connector)
- 1 x 10/100/1000BaseT(X) PoE+ port (RJ45)
- IEEE 802.3af/802.3at PoE+ compliant, up to 36 W output on the PoE+ port
- Typical distance: 550 m on OM1/OM2/OM3/OM4 multi-mode fibre
- Typical wavelength: 850 nm (TX range 830 to 870 nm)
- Jumbo frame size: 16 KB
- Input voltage: 44 to 57 VDC (dual power inputs)
- Power consumption: max 828 mA
- Overload current protection: 1.5 A
- Magnetic isolation protection: 1.5 kV (built-in)
- Metal housing, IP40 (with I/O modules attached)
- Dimensions: 90 x 73 x 20.3 mm
- Weight: 212 g
- DIN-rail mounting
- Operating temperature: -10 to 60°C
- Storage temperature: -40 to 85°C
- Ambient relative humidity: 5 to 95% (non-condensing)

FAQs

Q: What fibre type and distance does the IMC-P21GA-G2-SX-SC support?
A: It has a 1000BaseSX multi-mode SC port with a typical reach of 550 m on 62.5/125 um OM1 and 50/125 um OM2, OM3 and OM4 multi-mode fibre, at a typical wavelength of 850 nm.

Q: How much PoE power can the copper port deliver?
A: The PoE+ port is compliant with IEEE 802.3af and 802.3at. It delivers up to 30 W in standard mode and up to 36 W in high-power mode, suitable for IP cameras and wireless access points.

Q: What input voltage does it require?
A: The input range is 44 to 57 VDC via dual power inputs on a removable terminal block. For PoE+ output, an input above 52 VDC is recommended, and for PoE output above 44 VDC is recommended.

Q: How is the converter mounted and what environment is it rated for?
A: It mounts on a DIN rail and has a metal housing rated IP40 with I/O modules attached. The operating temperature range is -10 to 60°C.

Q: Does it support diagnostics for troubleshooting?
A: Yes. It supports PoE diagnostics and Link Fault Pass-through, and offers both store-and-forward and pass-through modes.

Q: What is the difference between this model and other IMC-P21GA-G2 variants?
A: This SKU uses a 1000BaseSX multi-mode SC fibre port with a typical reach of 550 m. Other variants in the range use different fibre interfaces and reach, so choose the model that matches your fibre type and link distance.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
