Moxa IMC-P21GA-G2 | PoE+ Gigabit Media Converter, SFP Slot

Authorised Moxa Partner

SKU:IMC-P21GA-G2

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The IMC-P21GA-G2 is an industrial PoE+ Gigabit Ethernet-to-fibre media converter that links a 10/100/1000BaseT(X) copper port to a 100/1000Base SFP slot. This model has an open SFP slot rather than a fixed SC fibre port, so you choose the SFP module to suit your fibre type and distance, with support for SX, LX or selected SFP modules for runs up to 80 km. The copper port acts as IEEE 802.3af/at power sourcing equipment, delivering up to 30 W in standard mode and up to 36 W in high-power mode to devices such as IP cameras and wireless access points.

It is built for industrial deployments, with redundant dual DC power inputs, an operating temperature range of -10 to 60 degrees Celsius, and surge and EMS protection. Store-and-forward and pass-through modes plus 16 KB jumbo frame support make it suitable for surveillance, transport and outdoor wireless installations that need to extend PoE+ devices over fibre. SFP modules are sold separately.

Features

- Converts copper Gigabit Ethernet to fibre through a flexible SFP slot
- IEEE 802.3af and 802.3at PoE+ power sourcing on the copper port
- Up to 36 W output for heavy-duty PoE devices such as cameras with wipers or heaters and high-performance wireless access points
- 10/100/1000BaseT(X) auto-negotiation and auto-MDI/MDI-X
- Store-and-forward and pass-through operating modes
- 16 KB jumbo frame support
- Redundant dual DC power inputs
- Compatible with SX, LX or selected SFP modules for distances up to 80 km
- Industrial -10 to 60 °C operating temperature range

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 1 x 10/100/1000BaseT(X) PoE+ port (RJ45)
- 1 x 100/1000Base SFP slot (no SFP module included)
- PoE standards: IEEE 802.3af (PoE) and IEEE 802.3at (PoE+)
- PoE+ output: up to 30 W standard mode, up to 36 W high-power mode
- Input voltage: 44 to 57 VDC, redundant dual DC power inputs
- PoE+ output recommended input: above 52 VDC; PoE output: above 44 VDC
- Power consumption: max 828 mA
- Overload current protection supported
- Jumbo frame support: 16 KB
- Operating modes: store-and-forward and pass-through
- Operating temperature: -10 to 60 °C
- ESD: contact 6 kV, air 8 kV
- EFT: power 2 kV, signal 1 kV
- Surge: power 2 kV, signal 1 kV
- MTBF: 8,709,561 hrs (Telcordia SR-332)

FAQs

Q: Does the IMC-P21GA-G2 include an SFP module?
A: No. It has an open 100/1000Base SFP slot and no SFP module is included, so you select the module to suit your fibre type and distance.

Q: How much PoE power can it deliver?
A: The copper port is IEEE 802.3af/at compliant, delivering up to 30 W in standard mode and up to 36 W in high-power mode.

Q: What input voltage does it require?
A: It runs from 44 to 57 VDC with redundant dual DC power inputs. A supply above 52 VDC is recommended for PoE+ output and above 44 VDC for standard PoE output.

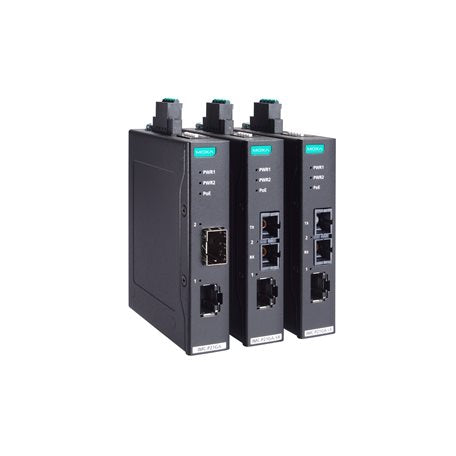

Q: How does it differ from the SX-SC and LX-SC variants?
A: The SX-SC and LX-SC models have a fixed SC fibre port. This model has an SFP slot instead, giving flexibility to choose the fibre module.

Q: What distances can it cover over fibre?
A: Distance depends on the SFP module fitted. It can be used with SX/LX or selected SFP modules for distances up to 80 km.

Q: What speeds does it support?
A: The copper port supports 10/100/1000BaseT(X) with auto-negotiation, and the SFP slot supports 100/1000Base modules.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
