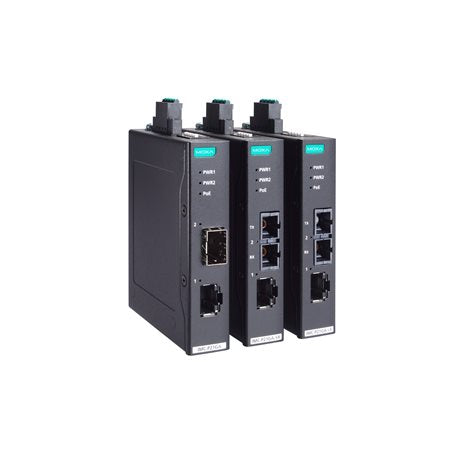

Moxa IMC-P21GA-G2-LX-SC | IMC-P21GA-G2 PoE+ Media Converter, 1000Base-LX, SM SC, 10km

Authorised Moxa Partner

SKU:IMC-P21GA-G2-LX-SC

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa IMC-P21GA-G2-LX-SC is an industrial PoE+ Gigabit Ethernet-to-fibre media converter that links a 10/100/1000BaseT(X) copper port to a 1000Base-LX single-mode SC fibre port with a typical reach of 10 km. The copper port acts as power sourcing equipment under IEEE 802.3af and 802.3at, delivering up to 36 W to powered devices such as IP cameras and wireless access points at remote or harsh locations.

A spare 100/1000Base SFP slot adds flexible fibre connectivity, while redundant dual 44 to 57 VDC power inputs and overload current protection keep the link running. The metal housing is DIN-rail mountable and rated for -10 to 60 C operation. PoE diagnostics, Link Fault Pass-through and support for 16 KB jumbo frames make it well suited to industrial automation, transport and surveillance networks.

Features

- 10/100/1000BaseT(X) auto-negotiation and auto-MDI/MDI-X
- IEEE 802.3af (PoE) and 802.3at (PoE+) compliant
- Up to 36 W output on the PoE+ port
- Store-and-forward and pass-through modes
- 16 KB jumbo frame support
- Redundant dual DC power inputs
- PoE diagnostics and Link Fault Pass-through
- Overload current protection

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 1 x 10/100/1000BaseT(X) PoE+ port (RJ45)
- 1 x 1000Base-LX single-mode SC port, 10 km typical
- 1 x 100/1000Base SFP slot
- Fibre cable: 9/125 um (OS1/OS2)
- Wavelength: 1310 nm typical, TX range 1280 to 1340 nm
- Optical power TX: -3 to 9 dBm, RX: -3 to -21 dBm
- Link budget: 12 dB, dispersion penalty: 1 dB
- IEEE 802.3af/802.3at PoE+, up to 36 W output
- Input voltage: 44 to 57 VDC, redundant dual inputs
- Power consumption: max 828 mA
- Jumbo frame size: 16 KB
- Magnetic isolation protection: 1.5 kV
- Metal housing, IP40, DIN-rail mounting
- Dimensions: 90 x 73 x 20.3 mm, weight: 212 g
- Operating temperature: -10 to 60 C
- Storage temperature: -40 to 85 C
- Humidity: 5 to 95% non-condensing
- MTBF: 8,709,561 hrs (Telcordia SR-332)

FAQs

Q: What fibre type and distance does the IMC-P21GA-G2-LX-SC support?
A: It uses a 1000Base-LX single-mode SC port with 9/125 um (OS1/OS2) fibre and a typical reach of 10 km at 1310 nm.

Q: How much PoE power can it deliver?
A: The RJ45 port is IEEE 802.3af/802.3at compliant and provides up to 36 W. A supply above 52 VDC is recommended for PoE+ output.

Q: Does it have an SFP slot as well as the SC port?
A: Yes. In addition to the fixed 1000Base-LX SC port, there is one 100/1000Base SFP slot for flexible fibre connectivity.

Q: What power input does it require?
A: It accepts 44 to 57 VDC through redundant dual DC inputs. For PoE+ output, a supply above 52 VDC is recommended.

Q: How is it mounted and what environment is it rated for?
A: It mounts on a DIN rail in a metal housing rated IP40, with an operating temperature range of -10 to 60 C.

Q: Does it support jumbo frames?
A: Yes, it supports jumbo frames up to 16 KB, along with store-and-forward and pass-through modes.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
