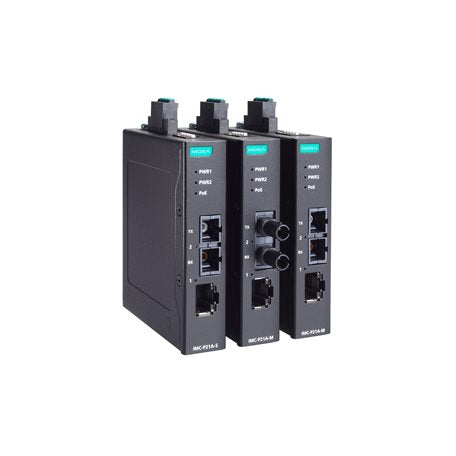

Moxa IMC-P21A-G2-S-SC | IMC-P21A-G2 PoE+ Industrial Media Converter, 40km SM SC

Authorised Moxa Partner

SKU:IMC-P21A-G2-S-SC

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The IMC-P21A-G2-S-SC is an industrial PoE+ Fast Ethernet-to-fibre media converter that links a 10/100BaseT(X) copper port to a 100Base-FX single-mode fibre port with an SC connector. Rated for 40 km typical distance on single-mode fibre and operation from -10 to 60°C, it suits long-haul field deployments such as surveillance cameras, wireless access points and remote industrial devices.

Acting as power sourcing equipment, the converter is IEEE 802.3af and 802.3at compliant and delivers up to 36 W over the copper port, so a powered device can be installed at the far end of a fibre run without a separate power supply. The metal DIN-rail housing, redundant dual DC power inputs and 1.5 kV magnetic isolation protection support dependable operation in industrial cabinets.

Features

- Converts 10/100BaseT(X) copper to 100Base-FX single-mode fibre
- PoE+ power sourcing delivers up to 36 W to powered devices
- Auto-negotiation and auto-MDI/MDI-X on the copper port
- Store-and-forward and pass-through modes
- PoE diagnostics for easier troubleshooting
- Link Fault Pass-through (LFPT)
- Redundant dual DC power inputs
- Wide-temperature industrial design

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 1 x 100BaseFX port, single-mode, SC connector
- 1 x 10/100BaseT(X) PoE port (RJ45)
- IEEE 802.3af (PoE) and 802.3at (PoE+) compliant, up to 36 W output on the PoE+ port
- Single-mode fibre: 1310 nm typical, 40 km typical distance (OS2 9/125 µm)
- Fibre link budget: 29 dB
- Operating temperature: -10 to 60°C
- Redundant dual DC power inputs
- 1.5 kV built-in magnetic isolation protection
- Metal housing, IP40 rating
- DIN-rail mounting
- Dimensions: 90 x 73 x 20.3 mm
- Weight: 212 g

FAQs

Q: What fibre type does the IMC-P21A-G2-S-SC use?
A: It has a single-mode 100BaseFX port with an SC connector, operating at 1310 nm over OS2 9/125 µm fibre for up to 40 km typical distance.

Q: Can it power devices such as IP cameras or access points?
A: Yes. The copper port is IEEE 802.3af and 802.3at compliant and provides up to 36 W, so compatible PoE and PoE+ powered devices can run directly from the converter.

Q: What speed does the copper port support?
A: The RJ45 port supports 10/100BaseT(X) with auto-negotiation and auto-MDI/MDI-X, so it connects to Fast Ethernet devices without crossover cables.

Q: What is the operating temperature range?
A: This model operates from -10 to 60°C.

Q: How is the converter mounted and powered?
A: It mounts on a DIN rail and has redundant dual DC power inputs, so it can stay powered if one supply fails.

Q: What does Link Fault Pass-through do?
A: Link Fault Pass-through (LFPT) passes a link failure on one side of the converter to the other, so connected equipment can detect a broken fibre or copper link.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
