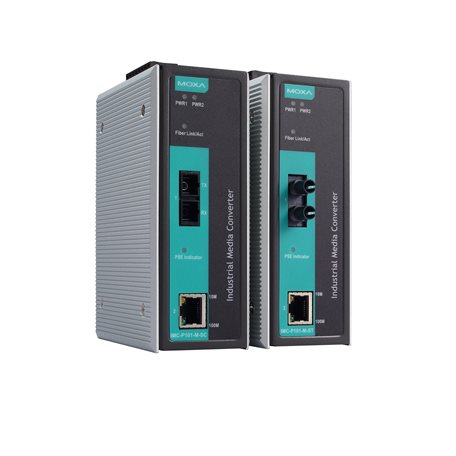

Moxa IMC-P101-S-ST-T | IMC-P101 PoE Media Converter, Single-Mode ST, -40 to 75°C

Authorised Moxa Partner

SKU:IMC-P101-S-ST-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa IMC-P101-S-ST-T is an industrial PoE media converter that links 10/100BaseT(X) copper Ethernet to 100BaseFX single-mode fibre through an ST connector. This extended-temperature (-T) model operates from -40 to 75°C and acts as IEEE 802.3af-compliant PoE power sourcing equipment on its copper port, making it well suited to powering remote IP cameras, wireless access points and other PoE devices over long fibre runs.

Redundant dual DC power inputs and a relay output for power failure alarms support reliable operation in harsh industrial environments. The converter offers auto-negotiation and auto-MDI/MDI-X on the copper port, and supports both store-and-forward and pass-through modes for flexible deployment in factory, transport and outdoor cabinet installations.

Features

- 10/100BaseT(X) auto-negotiation and auto-MDI/MDI-X
- IEEE 802.3af-compliant PoE PSE equipment
- Power failure alarm by relay output
- Supports store-and-forward mode and pass-through mode
- 40 to 75°C operating temperature range (-T models)
- Redundant dual DC power inputs

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 1 x 10/100BaseT(X) RJ45 port with auto-negotiation and auto-MDI/MDI-X
- 1 x 100BaseFX single-mode port with ST connector
- IEEE 802.3af-compliant PoE PSE on the copper port
- Operating temperature -40 to 75°C (-T model)
- Redundant dual DC power inputs
- Power failure alarm by relay output
- Store-and-forward and pass-through modes

FAQs

Q: What fibre type and connector does the IMC-P101-S-ST-T use?
A: It has a 100BaseFX single-mode fibre port with an ST connector, paired with a 10/100BaseT(X) RJ45 copper port.

Q: Can this media converter power PoE devices?
A: Yes. The copper port acts as IEEE 802.3af-compliant PoE power sourcing equipment, so it can power compatible PoE devices such as IP cameras and access points.

Q: What operating temperature range does the -T model support?
A: The IMC-P101-S-ST-T is rated for operation from -40 to 75°C, suitable for outdoor cabinets and harsh industrial sites.

Q: Does it support redundant power?
A: Yes. It provides redundant dual DC power inputs, and a relay output can signal a power failure alarm.

Q: Does it support auto-negotiation on the copper port?
A: Yes. The RJ45 port supports 10/100BaseT(X) auto-negotiation and auto-MDI/MDI-X, so straight-through or crossover cables both work.

Q: What forwarding modes are supported?
A: The converter supports both store-and-forward mode and pass-through mode.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
