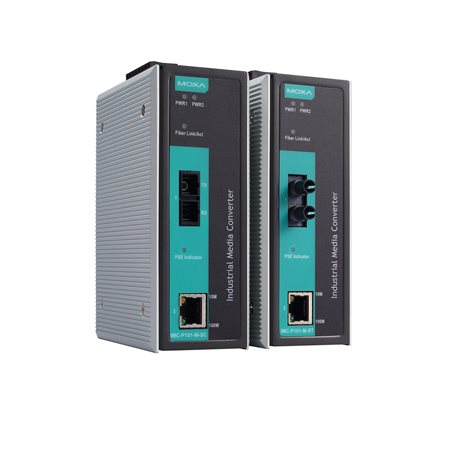

Moxa IMC-P101-S-SC-T | IMC-P101 PoE Industrial Media Converter, Single-Mode SC, -40 to 75°C

Authorised Moxa Partner

SKU:IMC-P101-S-SC-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The IMC-P101-S-SC-T is an industrial PoE media converter that converts 10/100BaseT(X) copper to 100BaseFX single-mode fibre over an SC connector, reaching distances of up to 40 km. It acts as PoE power sourcing equipment, supplying up to 30 W to a powered device, and its wide -40 to 75°C operating range suits outdoor cabinets, substations and factory floors.

The metal housing mounts on a DIN rail and accepts redundant 12 to 57 VDC dual power inputs on HW Rev. 1.1.0 and later, with a relay output to flag a power failure. Built-in 1.5 kV magnetic isolation, overload current protection and store-and-forward or pass-through operation make it a dependable link for extending PoE cameras, access points and other powered devices over long fibre runs.

Features

- 10/100BaseT(X) auto-negotiation and auto-MDI/MDI-X
- IEEE 802.3af PoE, plus 802.3at PoE+ on HW Rev. 1.1.0 and later
- Power failure alarm by relay output
- Store-and-forward and pass-through modes
- Wide -40 to 75°C operating temperature for harsh environments
- Redundant dual DC power inputs
- Rugged metal housing with DIN-rail mounting

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 1 x 100BaseFX single-mode SC port
- 1 x 10/100BaseT(X) PoE port (RJ45)
- PoE PSE, up to 30 W to powered devices (802.3af; 802.3at on HW Rev. 1.1.0 and later)
- Fibre cable type: G.652 single-mode
- Typical distance: 40 km at 1310 nm
- TX range: 1280 to 1340 nm, RX range: 1100 to 1600 nm
- Optical power TX: 0 to -5 dBm, RX: -3 to -34 dBm
- Link budget: 29 dB, dispersion penalty: 1 dB
- Input voltage: 12 to 57 VDC redundant dual inputs (HW Rev. 1.1.0 and later)
- Input current: 360 mA @ 12 to 57 VDC (HW Rev. 1.1.0 and later)
- Overload current protection and 1.5 kV built-in magnetic isolation
- Metal housing, DIN-rail mounting
- Dimensions: 144.5 x 122.3 x 51.65 mm
- Weight: 532 g (product only)
- Operating temperature: -40 to 75°C
- Storage temperature: -40 to 85°C
- Ambient relative humidity: 5 to 95% (non-condensing)
- EMI: CISPR 32, FCC Part 15B Class A
- Safety: UL 508, EN 62368-1
- MTBF: 2,892,595 hrs (Telcordia SR332)

FAQs

Q: What fibre type and connector does the IMC-P101-S-SC-T use?
A: It has one 100BaseFX single-mode port with an SC connector, designed for G.652 single-mode fibre at 1310 nm.

Q: How far can it transmit over fibre?
A: Typical single-mode distance is up to 40 km, with a 29 dB link budget.

Q: Does it supply PoE to connected devices?
A: Yes. It acts as PoE power sourcing equipment on its 10/100BaseT(X) RJ45 port, delivering up to 30 W. 802.3af is supported, and 802.3at on HW Rev. 1.1.0 and later.

Q: What operating temperature range does the -T model support?
A: The -T model operates from -40 to 75°C, making it suitable for outdoor enclosures and industrial sites.

Q: How is it powered?
A: On HW Rev. 1.1.0 and later it accepts redundant 12 to 57 VDC dual power inputs, and a relay output signals a power failure.

Q: How is it mounted?
A: It is mounted on a DIN rail and has a metal housing.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
