Moxa IMC-P101-S-SC | IMC-P101 PoE Media Converter, 100BaseFX SM SC, 0-60°C

Authorised Moxa Partner

SKU:IMC-P101-S-SC

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

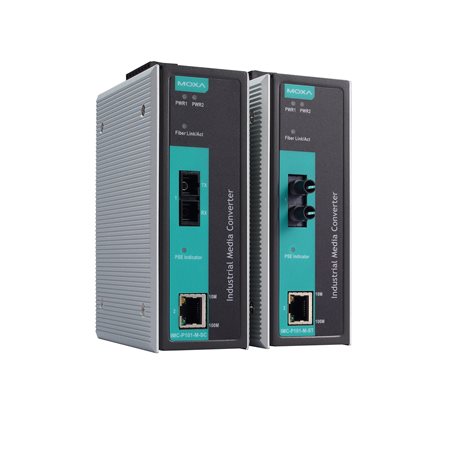

The Moxa IMC-P101-S-SC is an industrial PoE media converter that links 10/100BaseT(X) copper Ethernet to a 100BaseFX single-mode fibre run over an SC connector. It acts as power sourcing equipment, supplying up to 30 W to a powered device over its RJ45 port, which makes it well suited to extending PoE devices such as IP cameras and wireless access points across long fibre distances. This single-mode SC model with a 0 to 60°C operating range reaches a typical distance of 40 km.

Built in a metal housing for DIN-rail mounting, it accepts a 12 to 57 VDC input with redundant dual DC power inputs and overload current protection. A relay output raises an alarm on power failure, and the unit supports both store-and-forward and pass-through modes for flexible deployment in industrial networks.

Features

- 10/100BaseT(X) auto-negotiation and auto-MDI/MDI-X
- IEEE 802.3af PoE compliance, plus IEEE 802.3at PoE+ on HW Rev. 1.1.0 and later
- Power failure alarm by relay output
- Store-and-forward and pass-through modes
- Redundant dual DC power inputs
- Overload current protection

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 1 x 100BaseFX single-mode SC port
- 1 x 10/100BaseT(X) PoE port (RJ45)
- IEEE 802.3af PoE and IEEE 802.3at PoE+ (HW Rev. 1.1.0 and later)
- Up to 30 W to powered device
- Single-mode fibre type G.652, typical distance 40 km, wavelength 1310 nm
- TX power 0 to -5 dBm, RX power -3 to -34 dBm, link budget 29 dB
- Input voltage 12 to 57 VDC (HW Rev. 1.1.0 and later), redundant dual DC inputs
- Input current 360 mA @ 12 to 57 VDC (HW Rev. 1.1.0 and later)
- Magnetic isolation protection 1.5 kV
- Metal housing, DIN-rail mounting
- Dimensions 144.5 x 122.3 x 51.65 mm, weight 532 g
- Operating temperature 0 to 60°C, storage temperature -40 to 85°C
- Ambient relative humidity 5 to 95% (non-condensing)
- Safety UL 508, EN 62368-1, EMC EN 55032/35
- MTBF 2,892,595 hrs (Telcordia SR332)

FAQs

Q: What fibre type and connector does the IMC-P101-S-SC use?
A: It has one 100BaseFX single-mode port with an SC connector, designed for G.652 single-mode fibre at 1310 nm with a typical distance of 40 km.

Q: How much PoE power can it deliver?
A: It acts as power sourcing equipment and supplies up to 30 W to a powered device over its RJ45 port. It supports IEEE 802.3af, and IEEE 802.3at PoE+ on hardware revision 1.1.0 and later.

Q: What power input does it require?
A: It accepts 12 to 57 VDC on hardware revision 1.1.0 and later, with redundant dual DC power inputs and overload current protection.

Q: What is the operating temperature range?
A: This standard model operates from 0 to 60°C. It is not a wide-temperature variant.

Q: How is it mounted?
A: It is housed in a metal enclosure and mounts on a DIN rail.

Q: Can it alert me if power fails?
A: Yes. It includes a relay output that provides a power failure alarm.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
