Moxa IMC-P101-M-ST-T | IMC-P101 PoE Media Converter, Multi-Mode ST, -40 to 75°C

Authorised Moxa Partner

SKU:IMC-P101-M-ST-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

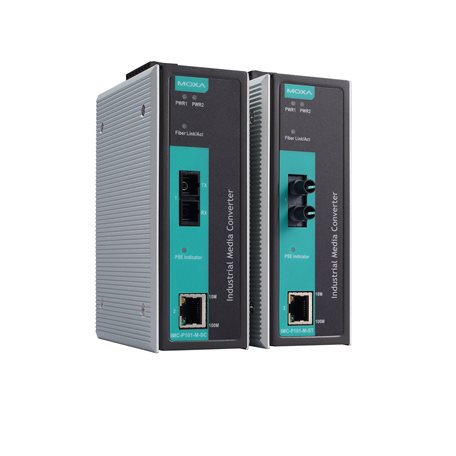

The Moxa IMC-P101-M-ST-T is an industrial PoE Ethernet-to-fibre media converter that links a 10/100BaseT(X) copper port to a 100BaseFX multi-mode fibre port with an ST connector. It acts as IEEE 802.3af power sourcing equipment, so it can power a connected device over the same copper cable, and the -T variant is rated for a wide -40 to 75°C operating range.

With a typical multi-mode reach of 4 km at 1300 nm, redundant dual DC power inputs and a relay output for power failure alarms, it suits factory floors, outdoor cabinets, transport and utility installations where copper devices such as IP cameras and wireless access points need a fibre uplink. It supports store-and-forward and pass-through modes and includes 1.5 kV built-in magnetic isolation protection.

Features

- 10/100BaseT(X) auto-negotiation and auto-MDI/MDI-X
- IEEE 802.3af PoE PSE, powering devices without extra wiring
- Power failure alarm by relay output
- Supports store-and-forward mode and pass-through mode
- Redundant dual DC power inputs
- Wide -40 to 75°C operating temperature range

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 1 x 10/100BaseT(X) PoE port (RJ45), auto-negotiation and auto-MDI/MDI-X
- 1 x 100BaseFX multi-mode port, ST connector
- Fibre typical distance 4 km (multi-mode, OM1 50/125 µm), 1300 nm typical wavelength
- TX range -10 to -20 dBm, RX range -3 to -32 dBm, 12 dB link budget
- IEEE 802.3, 802.3u, 802.3x, 10/100M full/half-duplex
- PoE PSE, IEEE 802.3af compliant
- Redundant dual DC power inputs with relay output for power failure alarm
- Built-in magnetic isolation protection, 1.5 kV
- Operating temperature -40 to 75°C

FAQs

Q: What fibre type and connector does the IMC-P101-M-ST-T use?
A: It has a 100BaseFX multi-mode port with an ST connector, with a typical reach of 4 km over OM1 50/125 µm fibre at 1300 nm.

Q: Can this media converter power connected devices?
A: Yes. The copper port acts as IEEE 802.3af PoE power sourcing equipment, so compatible powered devices such as IP cameras or access points can be powered over the same cable.

Q: What does the -T in the model name mean?
A: The -T variant is rated for a wide operating temperature range of -40 to 75°C, suited to unheated cabinets and harsh industrial environments.

Q: Does it support redundant power?
A: Yes. It has redundant dual DC power inputs and a relay output that signals a power failure.

Q: What link speeds does the copper port support?
A: The RJ45 port supports 10/100 Mbps full or half duplex with auto-negotiation and auto-MDI/MDI-X.

Q: What is the optical link budget?
A: The multi-mode link budget is 12 dB, with a TX range of -10 to -20 dBm and an RX range of -3 to -32 dBm.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
