Moxa IMC-P101-M-ST | IMC-P101 PoE Media Converter, 100FX Multi-Mode ST

Authorised Moxa Partner

SKU:IMC-P101-M-ST

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

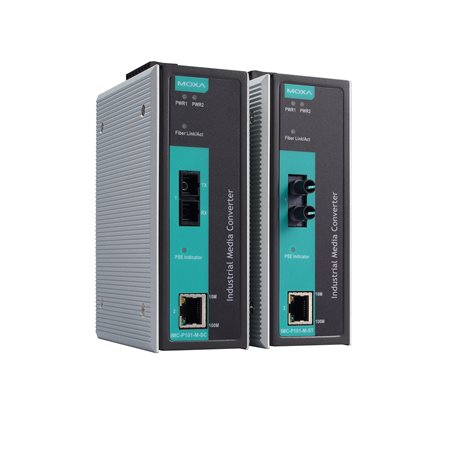

The Moxa IMC-P101-M-ST is an industrial PoE media converter that links 10/100BaseT(X) copper Ethernet to a 100BaseFX multi-mode fibre connection over an ST connector. It acts as PoE power sourcing equipment, so a single unit can extend a fibre run to a camera, wireless access point or other powered device at the copper end. This is the standard 0 to 60 C multi-mode ST model, with a typical multi-mode distance of 4 km.

Built in a metal housing for DIN-rail mounting, the converter takes redundant dual DC power inputs (46 to 57 VDC) and includes a relay output for power failure alarms. It supports store-and-forward and pass-through modes, with auto-negotiation and auto-MDI/MDI-X on the copper port, making it a straightforward fit for industrial cabinets and field installations.

Features

- Converts 10/100BaseT(X) copper Ethernet to 100BaseFX multi-mode fibre
- Acts as PoE power sourcing equipment to power attached devices
- IEEE 802.3af PoE compliance, with 802.3at PoE+ on HW Rev. 1.1.0 and later
- Auto-negotiation and auto-MDI/MDI-X on the copper port
- Redundant dual DC power inputs for resilient power
- Power failure alarm by relay output
- Supports store-and-forward and pass-through modes
- Rugged metal housing with DIN-rail mounting for industrial cabinets

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 1 x 10/100BaseT(X) RJ45 port (PoE PSE)
- 1 x 100BaseFX multi-mode ST port
- IEEE 802.3af PoE (802.3at PoE+ on HW Rev. 1.1.0 and later)
- Up to 30 W to powered devices on HW Rev. 1.1.0 and later; 15.4 W on 802.3af revisions
- Fibre type: multi-mode OM1, 50/125 um
- Typical multi-mode distance: 4 km
- TX wavelength typical: 1300 nm (range 1260 to 1360 nm)
- RX wavelength range: 1100 to 1600 nm
- Optical TX power: -10 to -20 dBm
- Optical RX power: -3 to -32 dBm
- Link budget: 12 dB
- Redundant dual DC power inputs, 46 to 57 VDC
- Input current: 430 mA at 46 to 57 VDC
- Overload current protection supported
- Operating temperature: 0 to 60 C
- Storage temperature: -40 to 85 C
- Ambient relative humidity: 5 to 95% (non-condensing)
- Dimensions: 144.5 x 122.3 x 51.65 mm
- Weight: 710 g
- Metal housing, DIN-rail mounting
- MTBF: 435,210 hrs

FAQs

Q: Does the IMC-P101-M-ST supply PoE to connected devices?
A: Yes. The copper RJ45 port acts as PoE power sourcing equipment under IEEE 802.3af, and IEEE 802.3at PoE+ on HW Rev. 1.1.0 and later.

Q: How much power can it deliver to a powered device?
A: Up to 30 W on HW Rev. 1.1.0 and later, and 15.4 W on the 802.3af hardware revisions.

Q: What fibre type and connector does this model use?
A: It has one 100BaseFX multi-mode port with an ST connector, designed for OM1 50/125 um fibre with a typical distance of 4 km.

Q: What power supply does it require?
A: It runs from a DC supply of 46 to 57 VDC and has redundant dual DC power inputs. The PoE output needs a supply in this range.

Q: What operating temperature range does this SKU support?
A: This is the standard model, rated for 0 to 60 C. The -T variants in the IMC-P101 range extend the operating range to -40 to 75 C.

Q: How is the media converter mounted?
A: It is built for DIN-rail mounting in a metal housing, suited to industrial control cabinets and field enclosures.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
