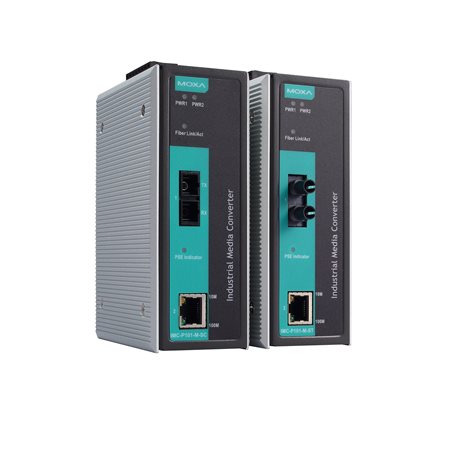

Moxa IMC-P101-M-SC-T | IMC-P101 PoE Media Converter, Multi-Mode SC, -40 to 75°C

Authorised Moxa Partner

SKU:IMC-P101-M-SC-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The IMC-P101-M-SC-T is an industrial PoE media converter that links 10/100BaseT(X) copper Ethernet to 100BaseFX multi-mode fibre with an SC connector. It acts as an IEEE 802.3af PSE, supplying up to 15.4 W to powered devices such as IP cameras and wireless access points, and the -T model operates across a -40 to 75°C temperature range.

Built for demanding installations, it features a metal housing, DIN-rail mounting, redundant dual DC power inputs and a relay output for power failure alarms. Multi-mode fibre support at 1300 nm reaches up to 4 km, making it well suited to extending Ethernet and PoE links in factory, transport and outdoor cabinet deployments.

Features

- 10/100BaseT(X) auto-negotiation and auto-MDI/MDI-X
- IEEE 802.3af-compliant PoE PSE
- Power failure alarm by relay output
- Supports store-and-forward mode and pass-through mode
- 40 to 75°C operating temperature range
- Redundant dual DC power inputs

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 1 x 100BaseFX port (multi-mode, SC connector)
- 1 x 10/100BaseT(X) PoE port (RJ45)
- IEEE 802.3af PoE PSE, up to 15.4 W to powered devices
- Multi-mode fibre: 1300 nm typical wavelength, typical distance 4 km (OM1 50/125 µm)
- 1.5 kV built-in magnetic isolation protection
- Input voltage 46 to 57 VDC, redundant dual DC power inputs
- Overload current protection supported
- Metal housing, DIN-rail mounting
- Dimensions 144.5 x 122.3 x 51.65 mm
- Weight 710 g
- Operating temperature -40 to 75°C
- MTBF 2,892,595 hrs (Telcordia SR332)

FAQs

Q: Does the IMC-P101-M-SC-T supply PoE to connected devices?
A: Yes. It acts as an IEEE 802.3af PSE and can deliver up to 15.4 W to a powered device over its RJ45 port.

Q: What fibre type and connector does this media converter use?
A: It has a 100BaseFX port for multi-mode fibre with an SC connector, using a typical 1300 nm wavelength.

Q: How far can it transmit over multi-mode fibre?
A: The typical distance is 4 km over OM1 50/125 µm multi-mode fibre.

Q: What temperature range does the -T model support?
A: The IMC-P101-M-SC-T operates from -40 to 75°C, suitable for harsh industrial and outdoor cabinet environments.

Q: How is it powered and mounted?
A: It accepts 46 to 57 VDC through redundant dual DC power inputs and mounts on a DIN rail in its metal housing.

Q: Can it alert me if power fails?
A: Yes. It provides a relay output that signals a power failure alarm.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
