Moxa IMC-P101-M-SC | IMC-P101 PoE Media Converter, Multi-Mode SC, 0-60C

Authorised Moxa Partner

SKU:IMC-P101-M-SC

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

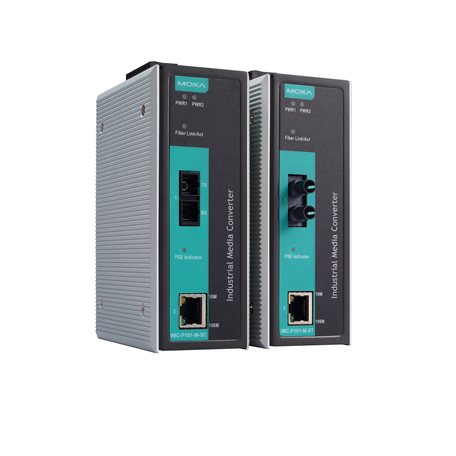

The IMC-P101-M-SC is an industrial PoE media converter that converts 10/100BaseT(X) copper Ethernet to 100BaseFX multi-mode fibre with an SC connector. Its RJ45 port acts as PoE power sourcing equipment (PSE), powering devices such as IP cameras and wireless access points over the same copper link, with a typical multi-mode reach of 4 km over OM1 50/125 µm fibre. This multi-mode SC variant is rated for 0 to 60°C operation.

Built for industrial installations, it has a metal housing with DIN-rail mounting, redundant dual DC power inputs and a power failure alarm by relay output. Newer hardware revisions support IEEE 802.3at PoE+ with up to 30 W to the powered device and a wide 12 to 57 VDC input. It is part of the IMC-P101 series.

Features

- 10/100BaseT(X) auto-negotiation and auto-MDI/MDI-X
- IEEE 802.3af PoE and 802.3at PoE+ compliance (PoE+ on HW Rev. 1.1.0 and later)
- PoE PSE function removes the need for separate power wiring to the powered device
- Power failure alarm by relay output
- Supports store-and-forward mode and pass-through mode
- Redundant dual DC power inputs
- Metal housing with DIN-rail mounting for industrial use

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 1 x 100BaseFX multi-mode SC port
- 1 x 10/100BaseT(X) PoE port (RJ45)
- PoE PSE: IEEE 802.3af (HW Rev. 1.0.1 and prior) / 802.3at PoE+ (HW Rev. 1.1.0 and later), up to 30 W to the powered device on newer hardware revisions
- Typical multi-mode distance: 4 km (OM1 50/125 µm, 800 MHz x km)
- Wavelength typical: 1300 nm (TX range 1260 to 1360 nm)
- Optical power TX: -10 to -20 dBm, RX: -3 to -32 dBm
- Link budget: 12 dB, dispersion penalty: 3 dB
- Input voltage: 12 to 57 VDC (HW Rev. 1.1.0 and later)
- Input current: 360 mA @ 12 to 57 VDC (HW Rev. 1.1.0 and later)
- Magnetic isolation protection: 1.5 kV built-in
- Overload current protection supported
- Metal housing, DIN-rail mounting
- Dimensions: 144.5 x 122.3 x 51.65 mm
- Weight: 532 g (product only)
- Operating temperature: 0 to 60°C
- Storage temperature: -40 to 85°C
- Ambient relative humidity: 5 to 95% (non-condensing)
- Safety: UL 508, EN 62368-1
- EMC: EN 55032/35, FCC Part 15B Class A
- MTBF: 2,892,595 hrs (Telcordia SR332)
- 5-year warranty

FAQs

Q: What does the IMC-P101-M-SC connect?
A: It converts a 10/100BaseT(X) copper Ethernet link to a 100BaseFX multi-mode fibre link with an SC connector, extending a PoE device up to a typical 4 km over OM1 50/125 µm fibre.

Q: Can it power connected devices?
A: Yes. The RJ45 port acts as PoE PSE. It supports IEEE 802.3af, and 802.3at PoE+ with up to 30 W on hardware revisions 1.1.0 and later.

Q: What fibre type does it need?
A: It uses multi-mode fibre with SC connectors. The typical reach of 4 km is based on OM1 50/125 µm fibre at 1300 nm.

Q: What power input does it accept?
A: Hardware revisions 1.1.0 and later accept 12 to 57 VDC, while earlier revisions (1.0.1 and prior) require 46 to 57 VDC. It has redundant dual DC inputs and a relay output for power failure alarms.

Q: How is it mounted and what is the operating temperature?
A: It has a metal housing with DIN-rail mounting and is rated for 0 to 60°C operation.

Q: How does it differ from other IMC-P101 models?
A: This model is the multi-mode SC version rated for 0 to 60°C. Other IMC-P101 variants differ in fibre type, connector or temperature range.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
