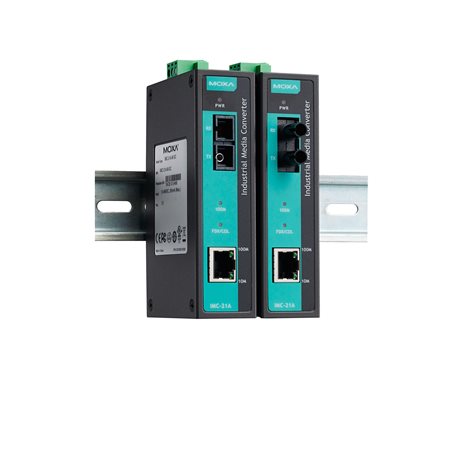

Moxa IMC-21A-M-SC | IMC-21A Industrial Media Converter, Multi-Mode, SC

Authorised Moxa Partner

SKU:IMC-21A-M-SC

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa IMC-21A-M-SC is an industrial media converter that links a 10/100BaseT(X) RJ45 copper port to a 100BaseFX multi-mode fibre port with an SC connector. It suits factory floors, utility cabinets and other harsh environments where copper Ethernet needs to be extended over fibre, with a typical multi-mode reach of 4 km at 1300 nm and an operating range of -10 to 60°C.

Built in a rugged IP30 metal housing with DIN-rail mounting, it runs from a 12 to 48 VDC supply via a terminal block and includes overload current protection and 1.5 kV magnetic isolation. DIP switches let you select full or half duplex, 10 or 100 Mbps, auto-negotiation or forced modes, and Link Fault Pass-Through (LFPT) helps surface link failures across the connection.

Features

- Converts 10/100BaseT(X) copper to 100BaseFX multi-mode fibre with SC connector
- Link Fault Pass-Through (LFPT) for faster fault detection
- DIP switches to select FDX/HDX, 10/100 Mbps, Auto or Force modes
- Rugged metal housing for harsh industrial environments
- Easy DIN-rail or distribution box mounting
- Wide 12 to 48 VDC input with overload current protection

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 1 x 10/100BaseT(X) port (RJ45)
- 1 x 100BaseFX multi-mode port (SC connector)
- Fibre cable type: OM1, 50/125 µm
- Typical multi-mode distance: 4 km at 1300 nm
- TX range: 1260 to 1360 nm, RX range: 1100 to 1600 nm
- Input voltage: 12 to 48 VDC via terminal block
- Input current: 265 mA @ 12 VDC
- Overload current protection supported
- 1.5 kV built-in magnetic isolation protection
- Metal housing, IP30, DIN-rail mounting
- Dimensions: 30 x 125 x 79 mm, weight 170 g
- Operating temperature: -10 to 60°C
- Storage temperature: -40 to 75°C
- Ambient relative humidity: 5 to 95% (non-condensing)
- MTBF: 353,000 hrs (MIL-HDBK-217F)

FAQs

Q: What fibre type and connector does the IMC-21A-M-SC use?
A: It uses a multi-mode 100BaseFX port with an SC connector, designed for OM1 50/125 µm fibre at 1300 nm.

Q: What is the maximum fibre distance?
A: The typical distance over multi-mode fibre is 4 km.

Q: What power supply does it need?
A: It runs from 12 to 48 VDC through a terminal block connector, drawing 265 mA at 12 VDC.

Q: What temperature range is this model rated for?
A: This standard model operates from -10 to 60°C. Wide-temperature operation is only available on the -T models in the series.

Q: How is it mounted?
A: It has an IP30 metal housing for DIN-rail mounting, and can also be installed in a distribution box.

Q: How do I set speed and duplex?
A: DIP switches select full or half duplex, 10 or 100 Mbps, auto-negotiation or forced modes.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
