Moxa IMC-101-M-SC | IMC-101 Industrial Media Converter, Multi-Mode SC, 0-60C

Authorised Moxa Partner

SKU:IMC-101-M-SC

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

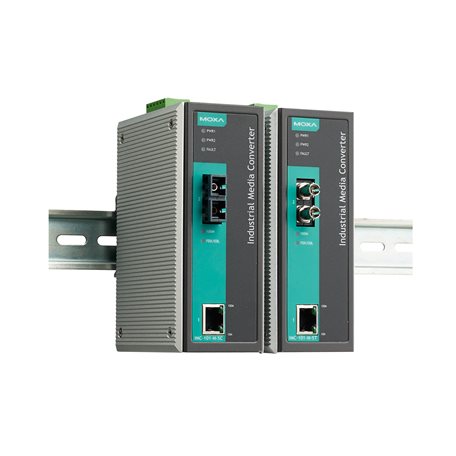

The Moxa IMC-101-M-SC is an industrial 10/100BaseT(X) to 100BaseFX media converter with a multi-mode SC fibre port, rated for 0 to 60°C operation. It links a copper RJ45 Ethernet device to a multi-mode fibre run of typically 4 km on 62.5/125 µm (OM1) or 5 km on 50/125 µm, making it suited to factory floors, utilities and other harsh or hazardous industrial sites.

The IMC-101 Series converter has a compact IP30 metal housing for DIN-rail mounting and redundant 12 to 45 VDC power inputs. Link Fault Pass-Through and a relay alarm output for power failure and port break simplify monitoring, while 1.5 kV magnetic isolation helps protect connected equipment. It is designed for hazardous locations (Class 1 Div. 2/Zone 2, IECEx) and carries DNV certification.

Features

- 10/100BaseT(X) auto-negotiation and auto-MDI/MDI-X
- Link Fault Pass-Through (LFPT) for fast fault detection
- Power failure and port break alarm by relay output
- Redundant power inputs for reliable operation
- Designed for hazardous locations (Class 1 Div. 2/Zone 2, IECEx)
- DNV certification, with FCC, UL and CE compliance
- 100% burn-in tested for industrial reliability

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 1 x 10/100BaseT(X) RJ45 port
- 1 x 100BaseFX multi-mode SC port
- Multi-mode fibre distance: typically 4 km (OM1, 62.5/125 µm) or 5 km (50/125 µm, 800 MHz x km)
- Wavelength: 1300 nm typical, TX range 1260 to 1360 nm, RX range 1100 to 1600 nm
- Optical TX power: -10 to -20 dBm, RX power: -3 to -32 dBm
- Input voltage: 12 to 45 VDC with redundant inputs, terminal block connector
- Input current: 200 mA at 12 to 45 VDC, with overload current protection
- 1.5 kV built-in magnetic isolation protection
- IP30 metal housing with DIN-rail mounting
- Dimensions: 53.6 x 135 x 105 mm, weight 630 g
- Operating temperature: 0 to 60°C, storage temperature: -40 to 85°C
- Ambient relative humidity: 5 to 95% (non-condensing)
- MTBF: 401,000 hrs (MIL-HDBK-217F)

FAQs

Q: What fibre type and distance does the IMC-101-M-SC support?
A: It has a 100BaseFX multi-mode SC port supporting typically 4 km on 62.5/125 µm (OM1) fibre or 5 km on 50/125 µm fibre.

Q: What is the operating temperature range of this model?
A: The IMC-101-M-SC operates from 0 to 60°C. Wide-temperature -T models in the IMC-101 Series cover -40 to 75°C.

Q: How is the converter powered?
A: It accepts 12 to 45 VDC through a terminal block and has redundant power inputs, with overload current protection.

Q: Can it alert me to a power or link failure?
A: Yes. A relay output signals power failure and port break, and Link Fault Pass-Through passes a fibre or copper link fault to the other side.

Q: How is the IMC-101-M-SC mounted?
A: It uses DIN-rail mounting in an IP30 metal housing measuring 53.6 x 135 x 105 mm.

Q: Is it suitable for hazardous locations?
A: It is designed for hazardous locations (Class 1 Div. 2/Zone 2, IECEx) and carries DNV certification.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
