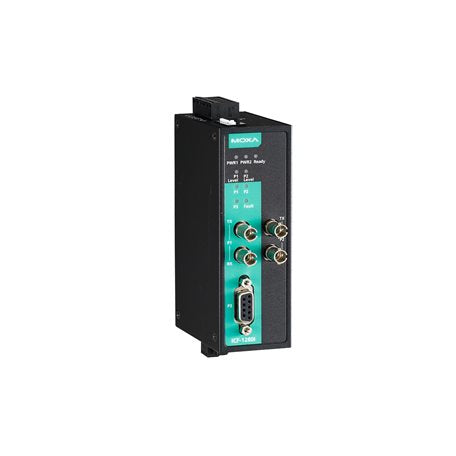

Moxa ICF-1280I-S-ST-T | ICF-1280I PROFIBUS-to-Fibre Converter, Single-Mode ST, -40 to 75°C

Authorised Moxa Partner

SKU:ICF-1280I-S-ST-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The ICF-1280I-S-ST-T is an industrial PROFIBUS-to-fibre converter that carries PROFIBUS DP signals over single-mode fibre with an ST connector. It extends PROFIBUS transmission distance up to 45 km and supports a redundant fibre ring, making it well suited to factory automation, process control and other long-haul industrial links. This -T model is the wide-temperature version, rated for -40 to 75°C.

Built-in 2 kV galvanic isolation, dual 12 to 48 VDC power inputs and a relay alarm output help protect and monitor the link. Auto baudrate detection handles data rates from 9600 bps to 12 Mbps, and the metal DIN-rail housing suits control cabinets and harsh industrial environments.

Features

- Redundant fibre ring with zero recovery time
- Extends PROFIBUS transmission distance up to 45 km over single-mode fibre
- Auto baudrate detection with data speeds up to 12 Mbps
- PROFIBUS fail-safe prevents corrupted datagrams in functioning segments
- Examines network-wide fibre communication from a single converter
- Supports Fibre Signal Intensity Diagnosis
- Alarm by relay output
- 2 kV galvanic isolation protection
- Dual power inputs for redundancy
- Wide-temperature model for -40 to 75°C environments

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 1 x PROFIBUS DP port (DB9 female), 9600 bps to 12 Mbps with auto baudrate detection
- 1 x 100BaseFX single-mode ST fibre port, 1310 nm
- Tx output -7 dBm, Rx sensitivity -29 dBm, link budget 21 dBm
- Typical distance up to 45 km
- 2 kV built-in galvanic isolation
- 12 to 48 VDC dual power inputs, 370 mA, terminal block connector
- Overload current protection supported
- Relay alarm output
- Operating temperature -40 to 75°C (-40 to 167°F)
- Ambient relative humidity 5 to 95% (non-condensing)
- Metal housing, IP30, DIN-rail mounting
- Dimensions 39 x 115 x 70 mm, weight 225 g
- Hazardous locations: ATEX, Class I Division 2, IECEx
- Maritime: DNV
- Safety: IEC 60950-1, UL 508
- MTBF 1,870,854 hrs (Telcordia (Bellcore), GB)

FAQs

Q: What fibre type and connector does the ICF-1280I-S-ST-T use?
A: It has one 100BaseFX single-mode fibre port with an ST connector, operating at 1310 nm.

Q: How far can this converter transmit PROFIBUS signals?
A: Typical distance over single-mode fibre is up to 45 km, based on a 21 dBm link budget.

Q: What does the -T in the model number mean?
A: The -T denotes the wide-temperature version, rated for operation from -40 to 75°C. It is suited to unconditioned cabinets and harsh industrial sites.

Q: What data rates does it support?
A: It supports PROFIBUS DP from 9600 bps up to 12 Mbps and detects the baudrate automatically.

Q: How is the converter powered?
A: It has dual 12 to 48 VDC power inputs on a terminal block for redundancy, drawing 370 mA, with overload current protection.

Q: Does it support a redundant fibre ring?
A: Yes. It supports a redundant fibre ring with zero recovery time, and a relay output can signal alarm conditions.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
