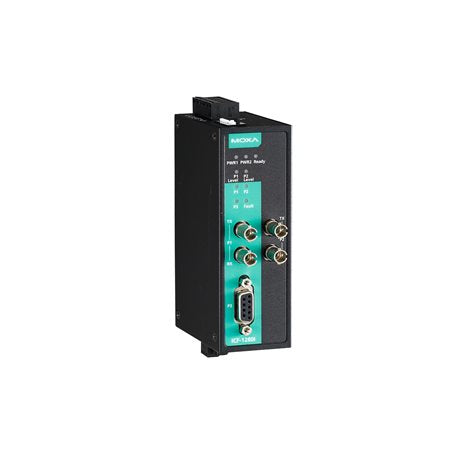

Moxa ICF-1280I-M-ST-T | ICF-1280I PROFIBUS-to-Fiber Converter, Multi-Mode, 2x ST, -40 to 75C

Authorised Moxa Partner

SKU:ICF-1280I-M-ST-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa ICF-1280I-M-ST-T is an industrial PROFIBUS-to-fiber converter that converts PROFIBUS signals from copper to multi-mode optical fibre over two ST ports. It supports redundant fibre ring topologies and is the wide-temperature variant, rated for operation from -40 to 75C, making it suited to harsh factory, process and outdoor cabinet environments.

With auto baudrate detection from 9.6 kbps up to 12 Mbps, redundant 12 to 48 VDC dual power inputs and 2 kV galvanic isolation, it extends PROFIBUS segments up to 4 km over multi-mode fibre. A metal IP30 housing and DIN-rail mounting make installation straightforward in standard control cabinets.

Features

- Redundant fibre ring with zero recovery time
- Auto baudrate detection with data speeds up to 12 Mbps
- PROFIBUS fail-safe prevents corrupted datagrams in functioning segments
- Relay output alarm for fault notification
- 2 kV galvanic isolation protection
- Dual power inputs for redundancy
- Fibre signal intensity diagnosis
- Wide operating temperature range of -40 to 75C

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 1 x PROFIBUS port (DB9 female)
- 2 x 100BaseFX multi-mode ST fibre ports
- Protocol: PROFIBUS DP (IEC 61158-2)
- Baudrate: 9.6 kbps to 12 Mbps with auto baudrate detection
- Maximum fibre transmission distance: 4 km (multi-mode)
- Minimum output power: -14 dBm
- Receiver sensitivity: -28 dBm
- Input voltage: 12 to 48 VDC, redundant dual inputs
- Input current: 370 mA at 12 to 48 VDC
- Power connector: terminal block
- Overload current protection supported
- Isolation: 2 kV galvanic
- Alarm: relay output
- MTBF: 1,870,854 hrs
- Dimensions: 39 x 115 x 70 mm
- Housing: metal, IP30, DIN-rail mounting
- Operating temperature: -40 to 75C

FAQs

Q: What fibre type and connectors does the ICF-1280I-M-ST-T use?
A: It has two multi-mode ST fibre ports (100BaseFX) and supports transmission distances of up to 4 km over multi-mode fibre.

Q: What operating temperature range does this model support?
A: The -T suffix denotes the wide-temperature version, rated for operation from -40 to 75C.

Q: What PROFIBUS speeds are supported?
A: It supports baudrates from 9.6 kbps up to 12 Mbps, with automatic baudrate detection.

Q: Does it support redundant fibre ring topologies?
A: Yes. The converter supports a redundant fibre ring with zero recovery time and can report faults through its relay alarm output.

Q: How is the converter powered?
A: It has redundant dual 12 to 48 VDC power inputs via a terminal block, with overload current protection.

Q: How is the ICF-1280I-M-ST-T mounted?
A: It has a compact metal IP30 housing designed for DIN-rail mounting inside a control cabinet.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
