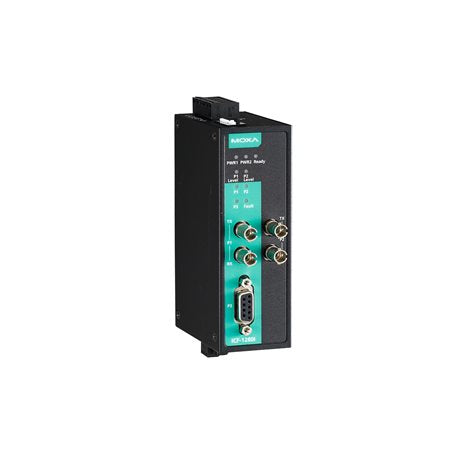

Moxa ICF-1280I-M-ST | ICF-1280I PROFIBUS-to-Fiber Converter, Multi-Mode ST, 0-60°C

Authorised Moxa Partner

SKU:ICF-1280I-M-ST

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa ICF-1280I-M-ST is an industrial PROFIBUS-to-fiber converter that carries PROFIBUS DP signals over multi-mode fibre using two ST connectors. It links a DB9 PROFIBUS port (9600 bps to 12 Mbps) to 100BaseFX fibre, covering up to 4 km, and is built for standard 0 to 60°C environments.

Two fibre ports support a redundant fibre ring with zero recovery time, while 2 kV built-in galvanic isolation and dual 12 to 48 VDC power inputs protect uptime in electrically noisy plants. The metal IP30 housing mounts on a DIN rail, and a relay output provides alarm signalling.

Features

- Redundant fibre ring with zero recovery time
- Examines network-wide fibre communication from a single converter
- Auto baudrate detection with data speeds of up to 12 Mbps
- PROFIBUS fail-safe prevents corrupted datagrams in functioning segments
- Alarm by relay output
- 2 kV galvanic isolation protection
- Dual power inputs for redundancy
- Supports Fiber Signal Intensity Diagnosis

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 1 x PROFIBUS port, DB9 female, 9600 bps to 12 Mbps
- 2 x 100BaseFX multi-mode fibre ports, ST connector
- Transmission distance up to 4 km over multi-mode fibre
- Industrial protocol: PROFIBUS DP
- 2 kV built-in galvanic isolation
- 2 x power inputs, 12 to 48 VDC, terminal block connector
- Input current 370 mA at 12 to 48 VDC
- Overload current protection supported
- Operating temperature 0 to 60°C (32 to 140°F)
- Storage temperature -40 to 75°C (-40 to 167°F)
- Relative humidity 5 to 95% (non-condensing)
- Metal housing, IP30, DIN-rail mounting
- Weight 225 g (0.49 lb)

FAQs

Q: What type of fibre does the ICF-1280I-M-ST support?
A: It has two 100BaseFX multi-mode fibre ports with ST connectors and supports transmission distances of up to 4 km.

Q: What PROFIBUS speeds does it support?
A: The DB9 female PROFIBUS port supports baudrates from 9600 bps to 12 Mbps, with auto baudrate detection.

Q: Can it be used in a redundant fibre ring?
A: Yes. The converter supports a redundant fibre ring with zero recovery time using its two fibre ports.

Q: What operating temperature range does this model cover?
A: This standard model operates from 0 to 60°C. A wide-temperature -T model is available for -40 to 75°C environments.

Q: How is the converter powered?
A: It has dual 12 to 48 VDC power inputs on a terminal block, so a second supply can provide redundancy.

Q: How is it mounted and what protection does it offer?
A: It mounts on a DIN rail in a metal IP30 housing, and includes 2 kV built-in galvanic isolation and overload current protection.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
