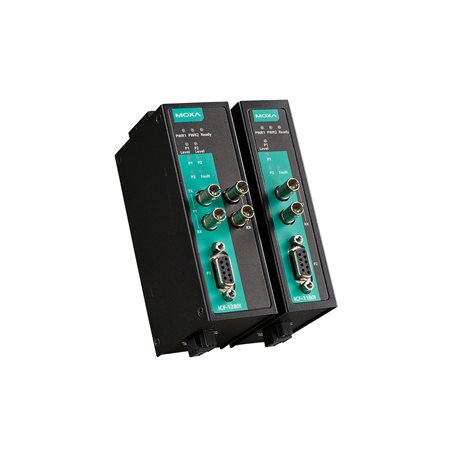

• Moxa ICF-1180I-S-ST-T black industrial Ethernet switch with teal ports
1 1

Moxa

Moxa ICF-1180I-S-ST-T | ICF-1180I PROFIBUS-to-Fiber Converter, Single-Mode ST, -40 to 75C

Moxa ICF-1180I-S-ST-T | ICF-1180I PROFIBUS-to-Fiber Converter, Single-Mode ST, -40 to 75C

Authorised Moxa Partner

ICF-1180I-S-ST-T

Stock Status: Enquire

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The ICF-1180I PROFIBUS-to-fiber converter carries PROFIBUS DP signals over single-mode fibre with an ST connector, extending transmission distances up to 45 km. This wide-temperature variant is rated for -40 to 75°C operation, making it suited to harsh industrial automation, process control and remote plant deployments.

Built-in 2 kV galvanic isolation, dual redundant 12 to 48 VDC power inputs and automatic baudrate detection from 9600 bps to 12 Mbps help keep PROFIBUS segments stable across long fibre runs. The metal IP30 housing supports DIN-rail (with optional kit) or wall mounting, and the converter carries hazardous location approvals including ATEX, Class I Division 2 and IECEx.

Features

- Extends PROFIBUS transmission distance up to 45 km over single-mode fibre
- Fibre-cable test function validates fibre communication
- Auto baudrate detection with data speeds up to 12 Mbps
- PROFIBUS fail-safe prevents corrupted datagrams in functioning segments
- Fibre inverse feature with selectable light ON/OFF for logic '1
- Relay output for warnings and alerts
- 2 kV galvanic isolation protection
- Dual power inputs for redundancy with reverse power protection
- Wide-temperature design for -40 to 75°C environments
- Fibre signal intensity diagnosis support

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 1 x PROFIBUS DP port, DB9 female
- Fibre: single-mode, ST connector, 1310 nm
- Typical distance: up to 45 km (single-mode)
- Tx output: -7 dBm, Rx sensitivity: -29 dBm, link budget: 21 dBm
- Baudrate: 9600 bps to 12 Mbps, auto-detect
- Isolation: 2 kV built-in
- Input voltage: 12 to 48 VDC, 2 power inputs, 269 mA input current
- Overload current protection supported
- Power connector: terminal block
- Housing: metal, IP30
- Dimensions: 30.3 x 115 x 70 mm
- Weight: 180 g
- Mounting: DIN-rail (with optional kit) or wall
- Operating temperature: -40 to 75°C
- Storage temperature: -40 to 85°C
- Humidity: 5 to 95% non-condensing
- Hazardous locations: ATEX, Class I Division 2, IECEx
- MTBF: 1,722,769 hrs

FAQs

Q: What fibre type and connector does the ICF-1180I-S-ST-T use?
A: It uses single-mode fibre with an ST connector at 1310 nm, with a typical reach of up to 45 km.

Q: What PROFIBUS speeds does it support?
A: It auto-detects baudrates from 9600 bps up to 12 Mbps on its single PROFIBUS DP port.

Q: What is the operating temperature range?
A: This wide-temperature model operates from -40 to 75°C, suitable for outdoor cabinets and harsh industrial sites.

Q: How is the unit powered?
A: It accepts 12 to 48 VDC through terminal block connectors and has two power inputs for redundancy, with reverse power and overload current protection.

Q: Does it provide electrical isolation?
A: Yes, it includes built-in 2 kV galvanic isolation to protect PROFIBUS equipment from surges and ground loops.

Q: How can it be mounted?
A: It can be wall mounted or mounted on a DIN rail using the optional DIN-rail kit.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
