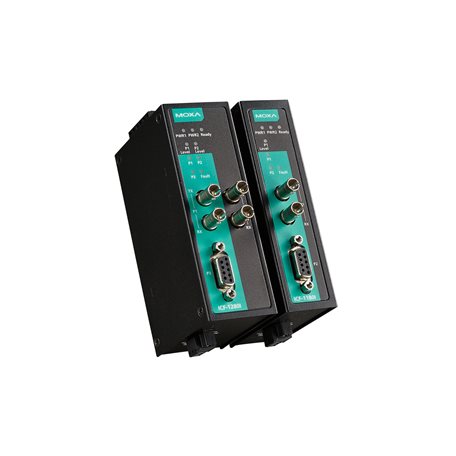

Moxa ICF-1180I-M-ST-T | ICF-1180I PROFIBUS-to-Fiber Converter, Multi-Mode ST, -40 to 75C

Authorised Moxa Partner

SKU:ICF-1180I-M-ST-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The ICF-1180I PROFIBUS-to-fiber converter carries PROFIBUS DP signals over multi-mode fibre with an ST connector, extending segment reach up to 4 km in industrial plants and field installations. This wide-temperature variant operates from -40 to 75°C, making it suited to unheated cabinets, outdoor enclosures and harsh factory environments where PROFIBUS cabling needs to be isolated from electrical noise.

It auto-detects the baudrate from 9600 bps to 12 Mbps, provides 2 kV built-in isolation, and includes dual redundant power inputs from 12 to 48 VDC. A fibre-cable test function, relay output for warnings and alerts, and PROFIBUS fail-safe behaviour help maintain network integrity, while hazardous location and maritime approvals support deployment in demanding sectors.

Features

- Fibre-cable test function validates fibre communication
- Auto baudrate detection with data speeds up to 12 Mbps
- PROFIBUS fail-safe prevents corrupted datagrams in functioning segments
- Fibre inverse feature
- Warnings and alerts by relay output
- 2 kV galvanic isolation protection
- Dual power inputs for redundancy with reverse power protection
- Wide-temperature design for -40 to 75°C environments
- Supports Fibre Signal Intensity Diagnosis

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 1 x PROFIBUS DP port (DB9 female)
- 1 x multi-mode fibre port (ST connector, 820 nm)
- Baudrate: 9600 bps to 12 Mbps (auto-detect)
- Typical distance: up to 4 km over multi-mode fibre
- Fibre Tx output: -14 dBm, Rx sensitivity: -28 dBm, link budget: 14 dBm
- 2 kV built-in isolation
- Input voltage: 12 to 48 VDC, 2 power inputs, 269 mA
- Overload current protection and reverse power protection
- Terminal block power connector
- Metal housing, IP30
- Dimensions: 30.3 x 115 x 70 mm, weight 180 g
- DIN-rail mounting (with optional kit) or wall mounting
- Operating temperature: -40 to 75°C
- Ambient relative humidity: 5 to 95% (non-condensing)
- Approvals: ATEX, Class I Division 2, IECEx, DNV, UL 508
- MTBF: 1,722,769 hrs

FAQs

Q: What fibre type and connector does the ICF-1180I-M-ST-T use?
A: It uses multi-mode fibre with an ST connector at 820 nm, with a typical distance of up to 4 km.

Q: What baudrates does it support?
A: It auto-detects the baudrate from 9600 bps up to 12 Mbps, so no manual speed configuration is needed.

Q: What is the operating temperature range?
A: This -T model operates from -40 to 75°C, suiting unheated cabinets and harsh industrial environments.

Q: Does it support redundant power?
A: Yes. It has two power inputs accepting 12 to 48 VDC, with overload current and reverse power protection.

Q: How is it mounted?
A: It can be mounted on a DIN rail using the optional mounting kit, or fixed to a wall.

Q: Can it be used in hazardous locations?
A: It carries ATEX, Class I Division 2 and IECEx approvals, and also has DNV maritime approval.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
